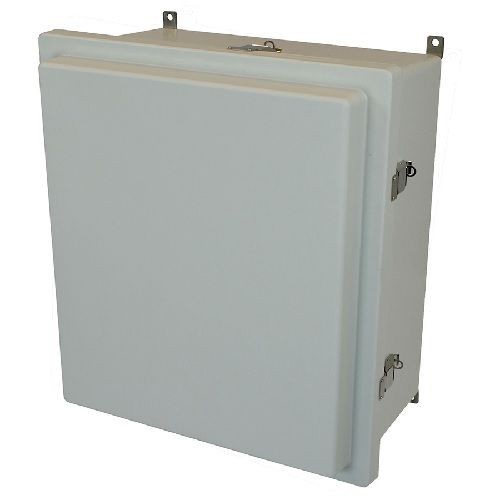

Allied Moulded AM1868RL JIC Size Junction Box With Matching Cover, 18.4 in H x 16.4 in W x 8.13 in D, Raised/Hinged Solid/Opaque Cover, NEMA 4X NEMA Rating, ULTRAGUARD® Fiberglass Reinforced Polyester/Thermoset
Allied Moulded AM1868RL JIC Size Junction Box With Matching Cover, 18.4 in H x 16.4 in W x 8.13 in D, Raised/Hinged Solid/Opaque Cover, NEMA 4X NEMA Rating, ULTRAGUARD® Fiberglass Reinforced Polyester/Thermoset
SKU: ABXAM1868RL
Manufacturer Part Number: AM1868RL
UPC: 085339918936
Features
- Raised, hinged snap latch type, overlapping and opaque cover design with formed-in-place polyurethane gasket system
- Non-corrosive, non-conductive, light weight with lower installation cost, easy to modify and longer life cycle compared to steel
- Rigid design with back panel inserts plus stainless steel mounting brackets and a gasket system encased in a continuous channel on the cover
- Stainless steel feet fastened to back side brass inserts
Specification
| Insulation | Non-Conductive/Non-Metallic |
|---|---|
| Length | 18.4 |
| Lock | 316 Stainless Steel Snap Latch/Padlock Hasp |
| Material | ULTRAGUARD® Fiberglass Reinforced Polyester/Thermoset |
| Mounting Type | Feet/Wall |
| NEMA Rating | NEMA 4X |
| Panel Size | 16.88 in H x 14.88 in W |
| Series | AM-R Series |
| Temperature Rating | -40 to 266 deg F |
| Type | JIC Size |
| Width | 16.4 in |
| Application | For industrial control panels intended for general industrial use, operating from a voltage of 600 VAC or less, enclose and protect electrical and electronic controls, instruments or components for indoor and outdoor applications and especially well suited for extreme temperature and corrosive environments |
| Standard & Approvals | ARRA Compliant, Buy American Act Compliant, RoHS Compliant, UL 508A, UL 50 and UL 50E, File No. E120175, cULus Listed, CSA C22.2 No. 14 and No. 94, File No. 89590, cCSAus Certified, EN/IEC 60204-1 and 60529, CE Certified, ECCN: EAR99 Certified |
| Capacity | 2981 |
| Color | Gray |
| Cover Type | Raised/Hinged Solid/Opaque |
| Depth | 8.13 |
| Includes | 316 Stainless Steel External Hardware (Hinges, Latches and Fasteners), 316 Stainless Steel Mounting Brackets, Plated Carbon Steel Internal Hardware, #10-32 Brass Inserts, #10-32 Stainless Steel Screws, Polyurethane Formed-In-Place Gasket System |
