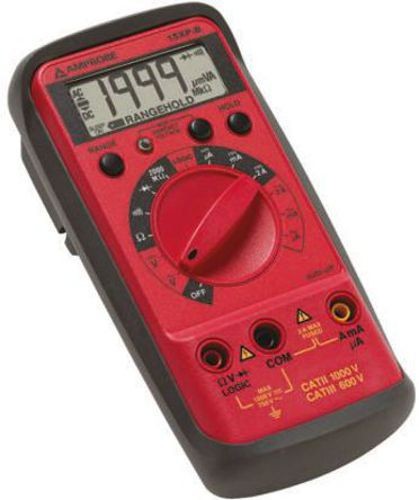

Amprobe® VolTect™ 15XP-B Compact Non-Contact Digital Multimeter, 1000 VDC, 750 VAC, 2A, 2000 MOhm, 750 VAC/1000 VDC, 2 A
Amprobe® VolTect™ 15XP-B Compact Non-Contact Digital Multimeter, 1000 VDC, 750 VAC, 2A, 2000 MOhm, 750 VAC/1000 VDC, 2 A
SKU: FLK15XP-B
Manufacturer Part Number: 15XP-B
UPC: 095969525770
Documents
Short Description
Features
- Input impedance of 400 mV- >100 MW, 4 V -10 MW, 40 V to 1000 - 9.1 MW
- Autoranging display for faster measurements
- TTL logic test for digital circuits
- Integrated tilt stand for easy bench use
- Diode test for component level troubleshooting
- Data hold freezes display to hold measurement reading
- Special 2000 MOhm measurement range
- Auto power off after 10 min approx, freeze the latest reading on the display, execute manual range mode
- Single standard 9 V battery, NEDA 1604, JIS 006P, IEC 6F22 power
- Automatic, positive implied, negative polarity indication, 3.0 VDC typical open circuit volt, Amprobe 15XP-B is the right choice for electronics engineers and field service technicians, featuring TTL logic test for digital circuits, diode test for component level
- Battery life of 200 hr typical with carbon-zinc, the + is displayed when the battery voltage drops below the operating level
- Non contact voltage has sense voltage of 70 V to 600 V ac (50 Hz to 60 Hz) beeper chirps and big bright red LED comes on, works on all ranges, 2 times per second, nominal measurement rate
- 3-1/2 digit liquid crystal display (LCD) with a maximum reading of 1999
- 100 uV, 0.1 uA, 100 mOhm, 1 mV diode test resolution
- AC current range- 200 uA, 2000 uA, 20 mA, 200 mA with accuracy of +/-(1.5 % rdg + 5 dgts), 2 A with accuracy of +/-(2.5 % rdg + 5 dgts), DC current range- 200 uA, 2000 uA, 20 mA, 200 mA, with accuracy of +/- (1 % rdg + 2 dgt), 2 A with accuracy of +/-(2 % rdg + 3 dgts)
- Resistance range - 200 Ohm, 2 kOhm, 20 kOhm, 200 kOhm, 2 MOhm with accuracy of +/- (1 % rdg + 4 dgts), 2000 MOhm with accuracy of +/- {5 % (rdg -10 dgts) + 20 dgt}
- AC voltage range - 200 mV(45 Hz to 100 Hz), 2 V, 20 V, 200 V, 750 V with accuracy of +/-(1.5 % rdg + 5 dgts)
- DC voltage range - 200 mV, 2 V, 20 V, 200 V, 1000 V with accuracy of +/- (0.5% rdg + 1 dgt)
- Continuity - 1000 VDC or 750 VAC rms
- Logic circuit TTL - threshold logic 1 (high) 2.8 V +/- 0.8 V, threshold logic 0 (low) 0.8 V +/- 0.5 V
Specification
| Measuring Range | 1000 VDC, 750 VAC, 2A, 2000 MOhm |
|---|---|
| Resistance | 2000 MOhm |
| Safety Rating | CAT II 1000 V, CAT III 600 V |
| Temperature Rating | 0 - 50 deg C |
| Type | Compact, Non-Contact |
| Voltage Rating | 750 VAC/1000 VDC |
| Standard & Approvals | CSA Certified, CE Certified |
| Dimensions | 155 mm H x 72 mm W x 32 mm D |
| Accuracy | +/- (1.5 % rdg + 5 dgts) AC Voltage |
| Battery Type | 9 V Battery NEDA 1604, JIS 006P or IEC 6F22 |
| Diode Test | 1.2 mA (Approximate) +/- (1.5 % rdg + 3 dgts) |
| Display | LCD |
| Amperage Rating | 2 A |
| Includes | Pair Of Test Leads (TL245A), Fuse 2 A/1000 V (P/N FP200), 9 V Battery(Installed), Magne-Grip™ Holster With Magnetic Hanging Strap and Users Manual |
