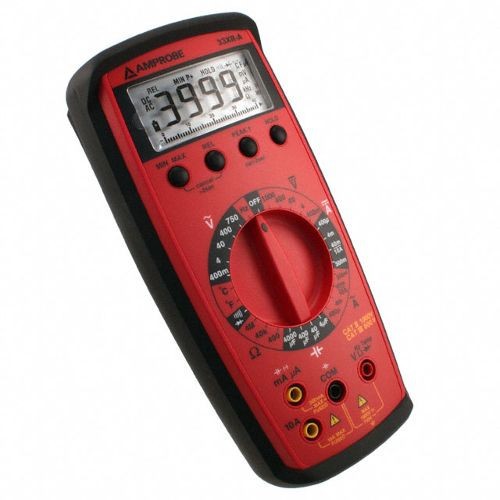

Amprobe® VolTect™ 33XR-A Non-Contact Digital Multimeter, 1000 VDC, 750 VAC, 10A, 4 MOhm, 750 VAC/1000 VDC, 10 A, 4 MOhm
Amprobe® VolTect™ 33XR-A Non-Contact Digital Multimeter, 1000 VDC, 750 VAC, 10A, 4 MOhm, 750 VAC/1000 VDC, 10 A, 4 MOhm
SKU: FLK33XR-A
Manufacturer Part Number: 33XR-A
UPC: 095969365376
Short Description
Features
- Manual ranging digital multimeter with temperature and capacitance for field service technicians
- Input warning tone when test leads are in wrong jack
- Continuity beeper
- Min/max, relative, peak and data hold
- Auto power off to save battery life
- Separate door for easy battery and fuse access
- Magne-Grip™ holster with magnetic hanging strap
- 2/Sec, nominal display update rate
- Analog bar graph
- Overrange indication
- 3-1/2 digit LCD, 1999 counts
- 100 uV, 0.1 uA, 100 mOhm resolution
- AC current range- 400 uA, 4 mA, 40 mA, 300 mA with accuracy of +/-(1.5 % rdg + 4 dgts), 10 A with accuracy of +/-(2.5 % rdg + 4 dgts), DC current range- 400 uA, 4 mA, 40 mA, 300 mA with accuracy of +/-(1 % rdg + 1 dgts), 10 A with accuracy of +/-(2 % rdg + 3 dgts)
- Resistance range- 400 Ohm , 40 kOhm with accuracy of +/- (1% rdg + 4 dgts) , 4 MOhm with accuracy of +/- (1.2% rdg + 4 dgts)
- AC voltage range- 400 mV, 40 V, 400 V, 750 V with accuracy of +/-(1.5 % rdg + 4 dgts), 4 V (200 Hz to 500 Hz) with accuracy of +/-(2 % rdg + 4 dgts)
- DC voltage range - 400 mV, 4 V, 40 V, 400 V, 1000 V with accuracy of +/- (0.7% rdg + 1 dgt)
- Capacitance - 4 uF with accuracy of +/- (5 % rdg + 10 dgts), 40 uF, 400 uF with accuracy of +/-(5 % rdg + 5 dgts), 4000 uF with accuracy of +/-(5 % rdg + 15 dgts), continuity - 1000 VDC or 750 V AC rms
Specification
| Frequency Rating | 1 MHz |
|---|---|
| Measuring Range | 1000 VDC, 750 VAC, 10A, 4 MOhm |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Accuracy | +/- (1.5 % rdg + 4 dgts) AC Voltage |
| Battery Type | 9 V Battery NEDA 1604, JIS 006P or IEC 6F22 |
| Capacitance | 4000 uF |
| Catalog ID | FLK33XR-A |
| Dimensions | 196 mm H x 92 mm W x 60 mm D |
| Diode Test | 1.0 mA (Approximate) +/- (1.5 % rdg + 3 dgts) |
| Display | LCD |
| Enclosure Type | Hard Plastic |
| Resistance | 4 MOhm |
| Safety Rating | CAT II 1000 V, CAT III 600 V |
| Temperature Rating | 0 - 45 deg C |
| Type | Non-Contact |
| Voltage Rating | 750 VAC/1000 VDC |
| Standard & Approvals | CSA Certified, CE Certified |
| Amperage Rating | 10 A |
