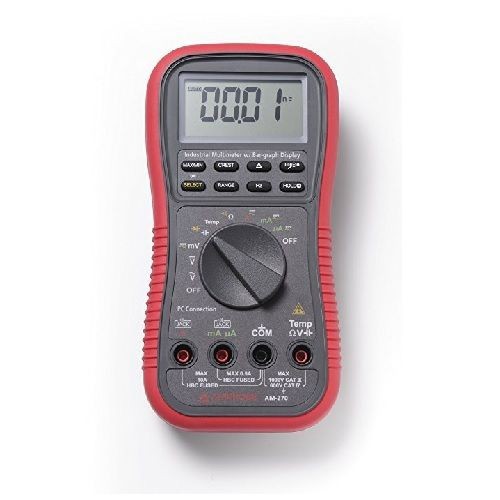

Amprobe® VolTect™ AM-270 Industrial Digital Multimeter, 1000 VDC/VAC, 10A, 50 MOhm, 1000 VAC/VDC, 10 A, 50 MOhm

Selected Amprobe® VolTect™ AM-270 Industrial Digital Multimeter, 1000 VDC/VAC, 10A, 50 MOhm, 1000 VAC/VDC, 10 A, 50 MOhm
Amprobe® VolTect™ AM-270 Industrial Digital Multimeter, 1000 VDC/VAC, 10A, 50 MOhm, 1000 VAC/VDC, 10 A, 50 MOhm

Documents

Short Description

Amprobe’s AM-270 is a commercial, true-rms multimeter for electrical and HVAC applications and is dedicated to electrical and HVAC professionals. Safety rated to CAT IV 600V and CAT III 1000V for outdoor and indoor applications requiring direct connection to main panel of the building or measurement of the outdoor wiring connecting building the utility transformer. This true-rms multimeter measures complete range of electrical parameters including voltage, current, resistance and frequency. It also covers HVAC application with temperature, capacitance and micro amps functions. True-rms sensing for superior accuracy

Features

  • Industrial multimeter with temperature, commercial - industrial multimeter for electrical and H VAC applications dedicated for electrical and H VAC professionals
  • Safety rated to CAT IV 600 V and CAT III 1000 V for outdoor and indoor applications requiring direct connection to main panel of the building or measurement of the outdoor wiring connecting building the utility transformer
  • Measures complete range of electrical parameters including voltage, current, resistance and frequency
  • It also covers H VAC application with temperature, capacitance and micro amps functions, True-rms sensing for superior accuracy
  • True rms (TRMS)
  • Auto and manual ranging
  • Auto power off
  • Data hold
  • Backlight display
  • Large, easy to read LCD display
  • Audible continuity
  • Optional PC-interface capabilities 50 MS Record max-min readings at fast 20/S measurement mode, 5 MS crest (instantaneous peak-hold) max-min readings, relative-zero offset mode, zoom 5x analog pointer at 60/Sec
  • -4/5 digits 5000 counts LCD display
  • AC current range at 50 Hz to 60 Hz - 500 uA, 5000 uA with accuracy of +/- (0.6 % + 3d), 50 mA, 500 mA with accuracy of +/- (1 % + 3d), 5 A with accuracy of +/- (0.6 % + 3d), 10 A, at 440 Hz to 1 kHz - 500 uA, 5000 uA, 50 mA, 5 A, 10 A with accuracy of +/- (0.8 % + 4d), 500 mA with accuracy of (1 % + 4d), DC current range- 500 uA with accuracy of (0.2 % + 4d), 5000 uA, 50 mA, 500 mA, 5 A, 10 A
  • AC voltage range at 50 Hz to 60 Hz- 50 mV, 500 mV, 5 V, 50 V, 500 V, 1000V with accuracy of +/-(0.5 % + 3d), at 40 to 500 Hz - 50 mV, 50 mV with accuracy of (0.8 % + 3d), 5 V, 50 V, 500 V with accuracy of +/-(1 % + 4d), 1000 V with accuracy of +/-(1.2 % + 4d)
  • DC voltage range - 50 mV, 500 mV 5 V, 50 V, 500 V, 1000V
  • Capacitance range 50 nF and 500 nF with accuracy of (0.8 % + 3d), 5 uF with accuracy of (1 % + 3d), 50 uF with accuracy of (2 % + 3d), 500 uF with accuracy of (3.5 % + 5d), 9999 uF with accuracy of (5 % + 5d)
  • Frequency range- 5 Hz, 50 Hz, 500 Hz, 5 kHz, 50 kHz, 500 kHz, 1 MHz

Specification

Frequency Rating
1 MHz
Measuring Range
1000 VDC/VAC, 10A, 50 MOhm
Minimum Order Qty
1
Order Interval
1
Accuracy
0.5% + 3d AC Voltage
Battery Type
9V, NEDA1604, JIS006P or IEC6F22
Capacitance
9999 uF
Catalog ID
FLKAM-270
Dimensions
317.5 mm L x 177.8 mm W x 76.2 mm H
Display
LCD
Resistance
50 MOhm
Safety Rating
CAT IV 600V and CAT III 1000V
Temperature Rating
-20 to 300 deg C
Type
Industrial
Voltage Rating
1000 VAC/VDC
Standard & Approvals
CE Certified, UL Listed
Application
For industrial use
Includes
Test Leads (Pair), Banana Plug K-Type Thermocouple, Batteries (Installed), Users Manual
Amperage Rating
10 A
