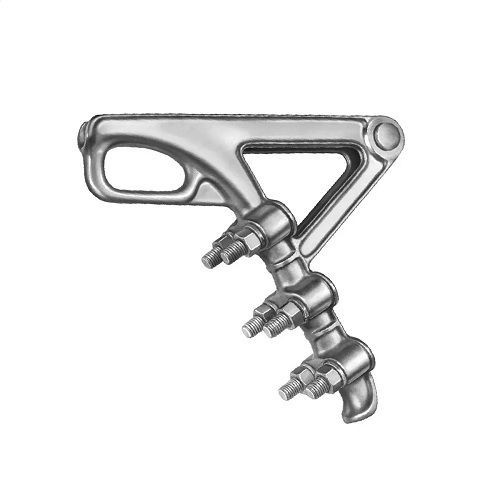

Anderson™ SD70N Quadrant Strain Clamp, Strength Rating 20000 lb, Aluminum

Selected SD70NAnderson™ SD70N Quadrant Strain Clamp, Strength Rating 20000 lb, Aluminum
SD70NAnderson™ SD70N Quadrant Strain Clamp, Strength Rating 20000 lb, Aluminum

Features

  • Type SD is designed for single cable
  • The Sag Eye Ultimate Strength is 60% of the Ultimate Body Strength without fitting
  • Rated slip strength as a % of conductor RBS varies with conductor type, size, and stranding. Minimum slip strength rating on standard strength conductors is 40% RBS (Partial Tension). For many standard strength conductors, minimum slip strength of this clamp series is 60% RBS (Normal Tension). Consult factory for slip strength test data on specific clamp and conductor combinations
  • Bolt and clevis pin will be the same diameter

Specification

Type
Bolted Quadrant Deadend
Minimum Order Qty
1
Order Interval
1
Catalog ID
HPSSD70N
Height
8.38 in
Length
10.25 in
Material
Aluminum Alloy
