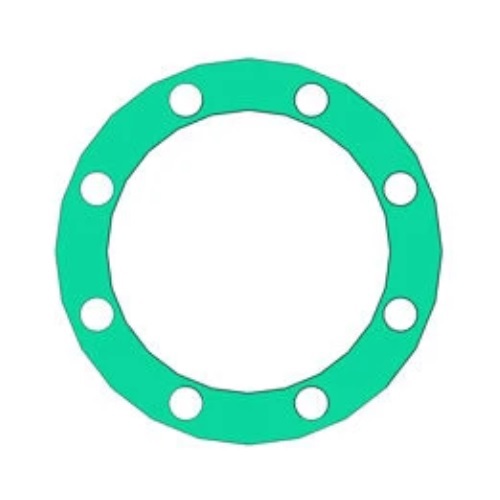

APG 13850FF062A0400 C4401 Gasket, Thermoseal C4401, 4 in Nominal, 9 in OD 1/16 in THK, Class 150 Class, Domestic
Selected GAS13850FF062A0400
APG 13850FF062A0400 C4401 Gasket, Thermoseal C4401, 4 in Nominal, 9 in OD 1/16 in THK, Class 150 Class, Domestic
SKU: GAS13850FF062A0400
Manufacturer Part Number: 13850FF062A0400
Features
- Synthetic fiber, nitrile binder, excellent sealability, excellent chemical resistance, good creep relaxation and good general purpose sheet
- Change in tensile strength 25% maximum decrease
- ASTM F104 line call out 712121B3E21M6
- 7-1/2 in bolt hole circle
- 1500 psi typical tensile strength
Specification
| Color | Green |
|---|---|
| Thickness | 1/16 in |
| Outside Diameter | 9 in |
| Class | Class 150 |
| Domestic/Import | Domestic |
| Nominal Size | 4 in |
| BoltHoleSize | 3/4 in |
| Series | C4401 |
| Material | Thermoseal C4401 |
| Inside Diameter | 4-1/2 in |
| Temperature Rating | Upto 750 deg F |
| Type | Full Face Gasket |
| Number of Bolt Holes | 8 |
