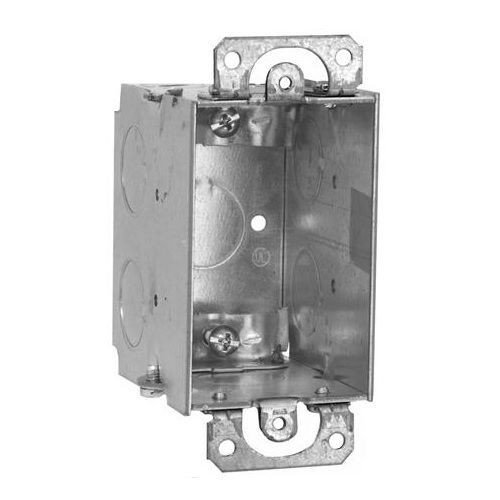

Appleton® 173FHB Gangable Square Corner Switch Box With (2) CL-13 Clamp, Steel, 12.5 cu-in Capacity, 9 Knockouts, 3 in H x 2 in W x 2-1/2 in D
Appleton® 173FHB Gangable Square Corner Switch Box With (2) CL-13 Clamp, Steel, 12.5 cu-in Capacity, 9 Knockouts, 3 in H x 2 in W x 2-1/2 in D
SKU: NEE173FHB
Manufacturer Part Number: 173FHB
UPC: 687855510849
Documents
Features
- Single and double gang metallic outlet and switch boxes are acceptable for use in two-hour fire rated walls
- Boxes with concentric or eccentric knockouts are suitable for bonding without any additional bonding means where used in circuits above or below 250 VAC
- All concentric or eccentric knockouts are 1/2 to 3/4 in combinations
- Lox Box™ supports and adjustable plaster ears support GFCI and decorative cover plates
Specification
| Material | Steel |
|---|---|
| Mounting Type | Screw-On/Nail-On |
| Number of Knockouts | 9 |
| Dimensions | 3 in H x 2 in W x 2-1/2 in D |
| Cable Entry | Knockout |
| Capacity | 12.5 cu-in |
| Finish | Pre-Galvanized |
| Enclosure Type | NEMA FB-1/OS-1 |
| Standard & Approvals | ARRA, Buy American Act and RoHS Compliant, UL Standard 514A; UL Listed E2527 |
| Application | For use with armored cable (AC), metal clad cable (MCI, MCI-A, MCS, MCC), flexible metal conduit |
| Type | Gangable Square Corner |
| Knockout Size | (4) 1/2 in Side, (4) 21/32 in End, (1) 1/2 in Bottom |
