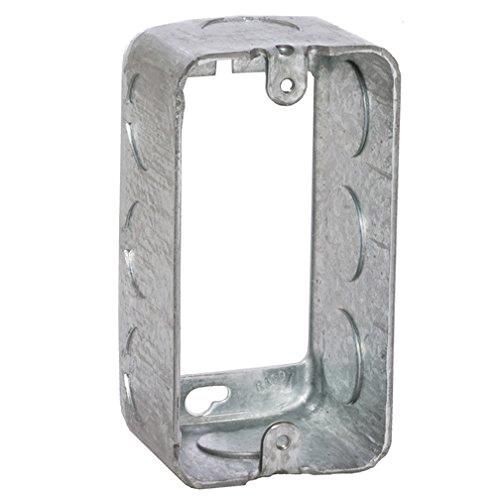

Appleton® 4CSE1/2 Handy Box Extension Ring, 1 Gang, 1-7/8 in D, Steel
Appleton® 4CSE1/2 Handy Box Extension Ring, 1 Gang, 1-7/8 in D, Steel
SKU: NEE4CSE1/2
Manufacturer Part Number: 4CSE1/2
UPC: 687855627639
Features
- Single and double gang metallic outlet and switch boxes are acceptable for use in two-hour fire rated walls
- Boxes with concentric or eccentric knockouts are suitable for bonding without any additional bonding means where used in circuits above or below 250 V
- All concentric or eccentric knockouts are 1/2 - 3/4 in combinations
- (6) 1/2 in side knockout, (2) 1/2 in end knockout
- 0.0625 in THK
- For use 4 x 2-1/8 in handy box
Specification
| Knockout Size | 1/2 in |
|---|---|
| Material | Steel |
| Mounting Type | Surface |
| Number of Gangs | 1 |
| Number of Knockouts | 8 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Cable Entry | Knockout |
| Capacity | 13 cu-in |
| Catalog ID | NEE4CSE1/2 |
| Depth | 1-7/8 in |
| Finish | Pre-Galvanized |
| Application | For use in fire-rated assemblies, armored cable (AC), metal clad cable (MCI, MCI-A, MCS, MCC), flexible metal conduit (FMC) |
| Standard & Approvals | UL 514A, 514B, 514D, E2527, NEMA FB-1, OS-1 |
