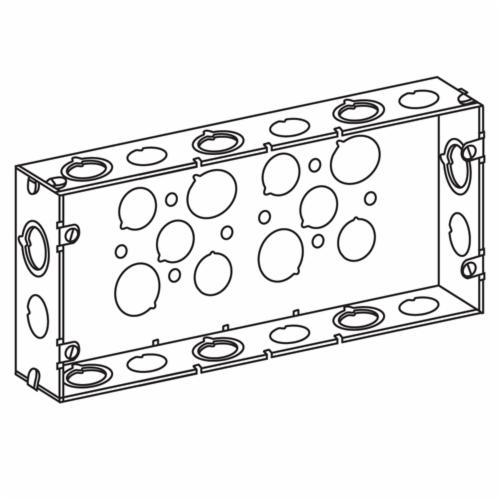

Appleton® ETP™ 4G5075S General Purpose Multi-Gang Switch Box, Steel, 80 cu-in Capacity, 4 Gangs, 26 Knockouts, 4-9/16 in H x 10-9/16 in W x 1-7/8 in D

Selected 4G5075SAppleton® ETP™ 4G5075S General Purpose Multi-Gang Switch Box, Steel, 80 cu-in Capacity, 4 Gangs, 26 Knockouts, 4-9/16 in H x 10-9/16 in W x 1-7/8 in D
4G5075SAppleton® ETP™ 4G5075S General Purpose Multi-Gang Switch Box, Steel, 80 cu-in Capacity, 4 Gangs, 26 Knockouts, 4-9/16 in H x 10-9/16 in W x 1-7/8 in D

Documents

Short Description

Appleton Group provides a complete selection of conduit bodies, outlet boxes, device boxes, cable glands and other fittings for both hazardous and ordinary locations. A variety of materials and styles are available to suit your needs for weather and corrosion-resistance. Whether you are wiring an office building or an offshore oil platform, Appleton Group has all the top quality components you need.

Features

  • Boxes with concentric or eccentric knockouts are suitable for bonding without any additional bonding means where used in circuits above or below 250 Volts
  • Unless otherwise noted all concentric or eccentric knockouts are 1/2 - 3/4 in combinations
  • Single and double gang metallic outlet and switch boxes are acceptable for use in two-hour fire rated walls
  • Other boxes provided with flat ground tapped hole, except plenum boxes
  • 182 lb per 100
  • Side knockouts: (6) 1/2 in, (6) Eccentric
  • End knockouts: (2) 1/2 in, (2) Eccentric
  • Bottom knockouts: (6) 1/2 in, (4) 3/4 in
  • Welded construction
  • Commercial product
  • 0.0625 in minimum thickness
  • AISI/SAE 1008 Steel

Specification

Knockout Size
1/2 in
Material
Steel
Number of Gangs
4
Number of Knockouts
22
Series
ETP
Shape
Square
Application
Residential and Commercial Applications
Standard & Approvals
UL 514A, E2527, RoHS Compliant
Cable Entry
Knockouts
Capacity
80 cu-in
Finish
Pre-Galvanized
Dimensions
4-9/16 in H x 10-9/16 in W x 1-7/8 in D
Type
General Purpose Multi Gang
Enclosure Type
NEMA FB-1/OS-1
