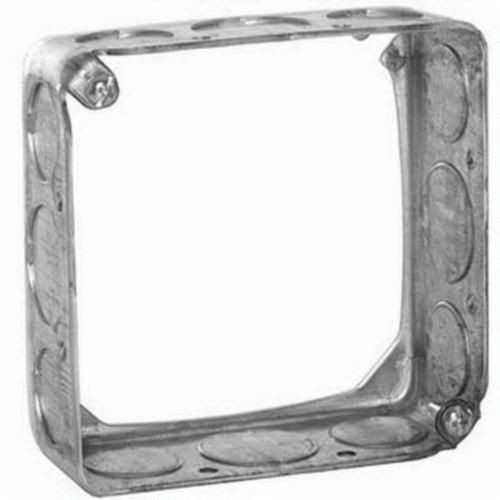

Appleton® 4SE1/2 Square Box Extension Ring, 1-1/2 in D, Steel
Appleton® 4SE1/2 Square Box Extension Ring, 1-1/2 in D, Steel
SKU: NEE4SE-1/2
Manufacturer Part Number: 4SE1/2
UPC: 687855751150
Documents
Features
- 8-32 screws top and two slide-on slots bottom
- For 4 x 2-1/8 in handy box
- 0.0625 in THK
- (12) 1/2 in side knockouts
Specification
| Knockout Size | 1/2 in |
|---|---|
| Material | Steel |
| Mounting Type | Surface |
| Number of Knockouts | 12 |
| Shape | Square |
| Application | For use in fire-rated assemblies |
| Standard & Approvals | AISI/SAE 1008, UL 514A/514B/514D, UL FB-1/OS-1 |
| Cable Entry | Knockout |
| Capacity | 21 cu-in |
| Depth | 1-1/2 in |
| Finish | Pre-Galvanized |
| Construction | Drawn |
