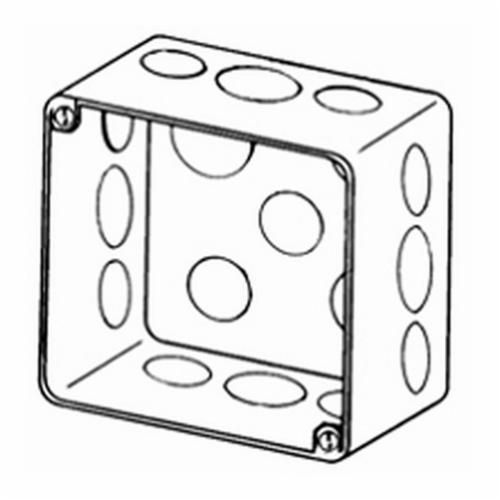

Appleton® ETP™ 4SPD Square Box, Steel, 30.3 cu-in Capacity, 17 Outlets, 17 Knockouts, 4 in H x 4 in W x 2-1/8 in D

Selected 4SPDAppleton® ETP™ 4SPD Square Box, Steel, 30.3 cu-in Capacity, 17 Outlets, 17 Knockouts, 4 in H x 4 in W x 2-1/8 in D
4SPDAppleton® ETP™ 4SPD Square Box, Steel, 30.3 cu-in Capacity, 17 Outlets, 17 Knockouts, 4 in H x 4 in W x 2-1/8 in D

Documents

Short Description

Appleton Group provides a complete selection of conduit bodies, outlet boxes, device boxes, cable glands and other fittings for both hazardous and ordinary locations. A variety of materials and styles are available to suit your needs for weather and corrosion-resistance. Whether you are wiring an office building or an offshore oil platform, Appleton Group has all the top quality components you need.

Features

  • Boxes with concentric or eccentric knockouts are suitable for bonding without any additional bonding means where used in circuits above or below 250 Volts
  • Unless otherwise noted all concentric or eccentric knockouts are 1/2 - 3/4 in combinations
  • Single and double gang metallic outlet and switch boxes are acceptable for use in two-hour fire rated walls
  • Other boxes provided with flat ground tapped hole, except plenum boxes
  • 84 lb per 100
  • Side knockouts: (8) 1/2 in, (4) 3/4 in
  • Bottom knockouts: (3) 1/2 in, (2) 3/4 in
  • Plenum Box
  • Without any holes and with reset knockouts
  • Commercial product
  • 0.0625 in minimum thickness
  • AISI/SAE 1008 Steel

Specification

Knockout Size
3/4 in
Material
Steel
Number of Knockouts
17
Number of Outlets
17
Series
ETP
Shape
Square
Application
Residential and Commercial Applications
Standard & Approvals
UL E18095, RoHS Compliant
Dimensions
4 in H x 4 in W x 2-1/8 in D
Cable Entry
Knockouts
Capacity
30.3 cu-in
Enclosure Type
NEMA FB-1/OS-1
Finish
Pre-Galvanized
