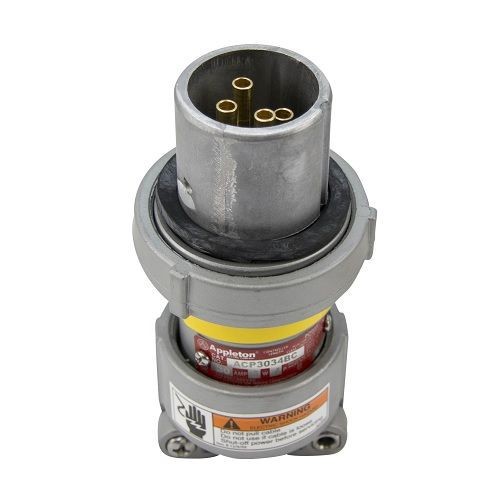

Appleton® Powertite ACP3034BC Clamping Ring Pin and Sleeve Plug, 600 VAC/250 VDC, 30 A, 4 Poles, 3 Wires
Appleton® Powertite ACP3034BC Clamping Ring Pin and Sleeve Plug, 600 VAC/250 VDC, 30 A, 4 Poles, 3 Wires
SKU: APPACP3034BC
Manufacturer Part Number: ACP3034BC
UPC: 781381440424
Features
- Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations, and similar apparatus
- Ideal for use on shipping docks, ports, and other "ship to shore" applications
- Suitable for use in locations where a weatherproof enclosure is required
- Rough usage construction
- Insulating blocks provide greatest dielectric and mechanical strength and lowest arc tracking
- Controlled length contacts ensure that ground makes first and breaks last for added safety
- Copperfree (4/10 of 1% max.) aluminum construction
- Glass filled polyester insulating blocks
- Epoxy powder coat plug
- Natural finish insulating blocks and contacts
- Plug and receptacle combination is NEMA 4X rated when clamping ring is fully tightened on receptacle
- Locking screw and slot prevents plug cable collar from backing off
- 0.281 in wire recess diameter
- Style 2 (Shell and Extra Pole) grounding style
- 10 - 6 AWG (Building), 10 - 8 AWG (Extra Flex) Wire Size
- 3 phase
- 0.5 to 1.25 in dia connector/plug cable
- 3/4 - 1 in hub
Specification
| Frequency Rating | 50 - 400 Hz |
|---|---|
| Material | Aluminum |
| NEMA Rating | NEMA 3/3R/4/4X |
| Number Of Poles | 4 |
| Number of Wires | 3 |
| Temperature Rating | -40 to 107 deg C |
| Terminal Type | Pressure Wire |
| Type | Clamping Ring |
| Voltage Rating | 600 VAC/250 VDC |
| Standard & Approvals | CSA C22.2 No. 182.1 Certified, CSA File 065179 Certified, NEMA FB11, RoHS Compliant, UL 1682, 1686, 50E Listed, UL File E145916, E145917 Listed |
| Amperage Rating | 30 A |
| Horsepower | 20 hp |
| Application | For ADR3034 receptacle and ARC3034BC connector body |
| Dimensions | 3.13 in Dia x 6 in L |
