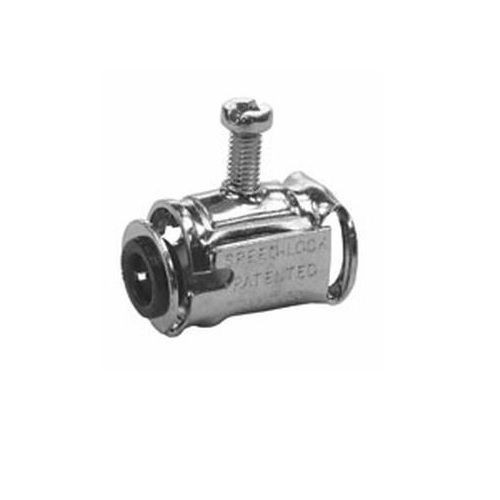

Appleton® AMC-50 Armored Cable, 1/2 in Trade, 1/2 in Knockout, Steel, Electro-Zinc Plated

Selected Appleton® AMC-50 Armored Cable, 1/2 in Trade, 1/2 in Knockout, Steel, Electro-Zinc Plated
Appleton® AMC-50 Armored Cable, 1/2 in Trade, 1/2 in Knockout, Steel, Electro-Zinc Plated

Documents

Features

  • No locknut required
  • Single channel or duplex construction with captive clamp
  • Connects over 100 sizes of MC, AC or flexible metal conduit with just four fittings
  • Easy to install, just tilt, insert and snap down
  • Single channel construction eliminates loose component parts
  • Integral red plastic insulated throat busing provides maximum protection for wire insulation
  • Single opening

Specification

Knockout Size
1/2 in
Material
Steel
Minimum Order Qty
1
Order Interval
1
Catalog ID
NEEAMC-50
Dimensions
1.38 in L x 1 in W x 0.69 in H
Finish
Electro-Plated Zinc
Trade Size
1/2 in
Application
For steel box installations and to ground and secure MC, AC and flexible metal conduit to boxes and enclosures
Standard & Approvals
UL 514B, File No. E11852, CSA C22.2 No. 18.3, CSA File No. 028507
