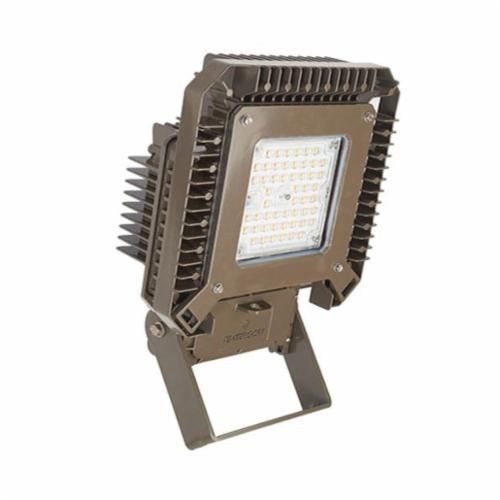

Appleton® Areamaster™ II AMLGL7CG6BU Enclosed Gasketed Floodlight Fixture, LED Lamp, 110 W Fixture, 120/277 VAC, 170/300 VDC, Architectural Bronze Polyester Coated Housing

Selected AMLGL7CG6BUAppleton® Areamaster™ II AMLGL6CG6BU Enclosed Gasketed Floodlight Fixture, LED Lamp, 70 W Fixture, 120/277 VAC, 170/300 VDC, Architectural Bronze Polyester Coated Housing
AMLGL7CG6BUAppleton® Areamaster™ II AMLGL6CG6BU Enclosed Gasketed Floodlight Fixture, LED Lamp, 70 W Fixture, 120/277 VAC, 170/300 VDC, Architectural Bronze Polyester Coated Housing

Documents

Short Description

Areamaster™ Generation 2 LED luminaires deliver best-in-class LED performance. The redesigned Areamaster™ provides greater versatility, with models from 9,000 to 19,500 lumens and a choice of beam patterns to meet your diverse floodlighting needs. Featuring new optic designs for superior uniformity and coverage, the Areamaster™ Generation 2 LED luminaires provide HID equivalent lighting that saves over 75 percent in energy costs and practically eliminates maintenance burdens. They are certified for class I, division 2 and class II hazardous locations and rated for use in NEC and CEC installations.

Features

  • Three lumen outputs provide up to 19500 lumens
  • Choice of optics for optimal light distribution in a variety of application
  • Separate field wiring compartment with screw terminal block for easy and secure connection (can accept UL/CSA 26-10AWG)
  • Two 3/4 in NPT entries provided
  • Yoke bracket is designed to accommodate traditional Areamaster™ brackets and slip fitters for easy retrofit
  • Rugged and compact housing with superior thermal design translates to long luminaire life
  • Heavy duty, high temperature silicone rubber gaskets
  • Thermal shock and impact-resistant clear or frosted glass lens
  • Standard 6KV surge protection
  • Captive fasteners secure one piece lens, field replaceable LED driver and lens cover
  • Copperfree (4/10 of 1% max) aluminum housing and lens door
  • Silicone rubber gasket, zinc plated hr steel yoke mount, stainless steel bolts, aluminum close up plugs, stainless steel guard and safety cable, aluminum visor
  • Architectural bronze polyester housing, lens cover and yoke mount
  • -40 to 65 deg C ambient and 90 deg C supply wire temperature
  • 50/60 Hz frequency
  • <20% THD
  • >0.9 power factor
  • Luminaires for use in hazardous locations
  • Generation 2 LED luminaire
  • 7 x 7 (non-optic) beam Spread

Specification

Housing Finish
Architectural Bronze Polyester Coated
Housing Material
Aluminum
Lamp Type
LED
Lamp Wattage
250 to 400 W
Lens Type
Impact Resistant Clear Glass
Light Color
Cool White
Lumens
15300 Lumens
Mounting Type
Yoke
Minimum Order Qty
1
Order Interval
1
Color Rendering Index (CRI)
70
Color Temperature
5000 K
Application
For use in wide range of industrial, chemical processing and other areas where flammable gases and vapors are present such as oil and gas refineries, petrochemical plants, foundries, drilling rigs, pulp and paper mills, food and beverage processing facilities, loading docks, power plants, water and wastewater treatment facilities other areas where corrosive, wet, dirty and tough environments are a problem
Standard & Approvals
UL 844/1598/8750/, CSA C22.2 No. 250.0, CSA C22.2 No. 137, cCSAus 164460, RoHS Compliant
Voltage Rating
120/277 VAC, 170/300 VDC
Type
Enclosed Gasketed
Series
AMLG
Fixture Wattage
110 W
Enclosure Type
NEMA 3R/4/4X/IP66/IP67
Dimensions
16.28 in H x 12.94 in W x 5.05 in D
Catalog ID
APPAMLGL7CG6BU
Average Life
>60000 hr
Amperage Rating
0.94/0.43/0.67/0.37 A
