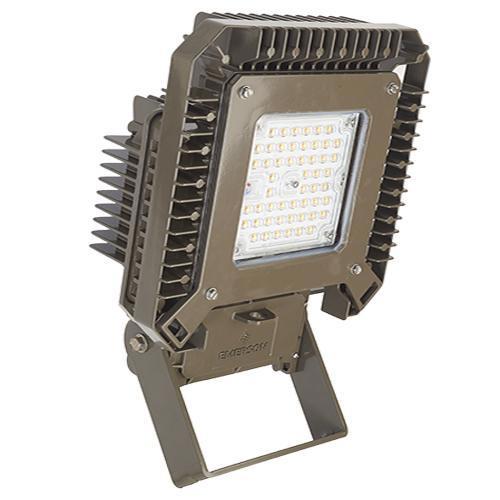

Appleton® Areamaster™ II AMLGL8CG6BU Enclosed Gasketed Floodlight Fixture, LED Lamp, 150 W Fixture, 120/277 VAC, 170/300 VDC, Architectural Bronze Polyester Coated Housing

Appleton® Areamaster™ II AMLGL8CG6BU Enclosed Gasketed Floodlight Fixture, LED Lamp, 150 W Fixture, 120/277 VAC, 170/300 VDC, Architectural Bronze Polyester Coated Housing
SKU: APPAMLGL8CG6BU
Manufacturer Part Number: AMLGL8CG6BU
UPC: 781381602600
Short Description
Features
- Three lumen outputs provide up to 19500 lumens
- Choice of optics for optimal light distribution in a variety of applications
- Separate field wiring compartment with screw terminal block for easy and secure connection
- Two 3/4 in NPT entries provided
- Yoke bracket is designed to accommodate traditional Areamaster™ brackets and slip fitters for easy retrofit
- Rugged and compact housing with superior thermal design translates to long luminaire life
- Heavy duty, high temperature silicone rubber gaskets
- Thermal shock and impact resistant clear or frosted glass lens
- Standard 6 kV surge protection
- Captive fasteners secure one-piece lens
- Field replaceable LED driver and lens cover
Specification
| Lamp Wattage | 400 to 750 W |
|---|---|
| Housing Material | Aluminum |
| Light Color | Cool White |
| Dimensions | 16.28 in H x 12.94 in W x 5.05 in D |
| Enclosure Type | NEMA 3R/4/4X/IP66/IP67 |
| Lamp Type | LED |
| Amperage Rating | 1.3/0.56/0.92/0.51 A |
| Series | AMLG |
| Lens Type | Impact-Resistant Glass |
| Fixture Wattage | 150 W |
| Average Life | 60000 hr |
| Color Rendering Index (CRI) | 70 |
| Color Temperature | 5000 K |
| Lumens | 19000 Lumens |
| Housing Finish | Architectural Bronze Polyester Coated |
| Type | Enclosed Gasketed |
| Voltage Rating | 120 to 277 VAC/170 to 300 VDC |
| Mounting Type | Yoke |
