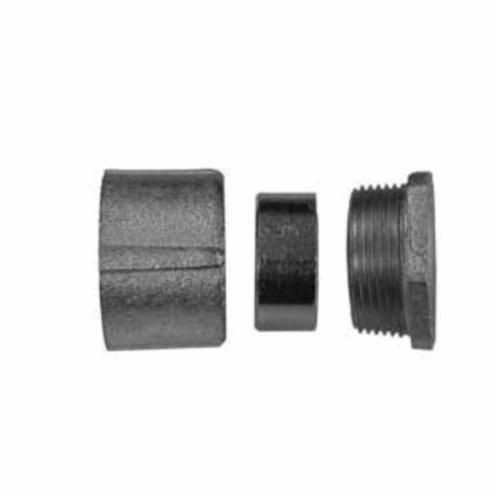

Appleton® EC-50 3-Piece Concretetight Conduit Union, 1/2 in, 90 deg, Malleable Iron

Selected EC-50Appleton® EC-50 3-Piece Concretetight Conduit Union, 1/2 in, 90 deg, Malleable Iron
EC-50Appleton® EC-50 3-Piece Concretetight Conduit Union, 1/2 in, 90 deg, Malleable Iron

Documents

Short Description

We offer a complete line of connectors and couplings for steel EMT conduit. Fittings are available in both steel and zinc, using either a compression or set-screw design. UL Listed raintight steel compression connectors and couplings are also available, along with flexible fittings straps, clamps, benders and other parts and accessories needed to complete any EMT installation.

Features

  • Three piece union couples two lengths of conduit when neither can be turned
  • Female threaded
  • Gasketed pulling elbows provides a compact wire pulling point
  • Elbows provide a 90 deg change of direction in a conduit run
  • Concretetight

Specification

Material
Malleable Iron
Size
1/2 in
Suitable For Use With
IMC/Rigid Conduit
Dimensions
1-7/16 in OD x 1-3/8 in L
Angle
90 deg
Standard & Approvals
UL 514B, UL E14814, CSA C22.2 No 18.3, CSA 065178 Certified, NEMA FB-1, RoHS Compliant
Application
For connecting threaded rigid conduit or IMC to box or enclosure
Series
EC
