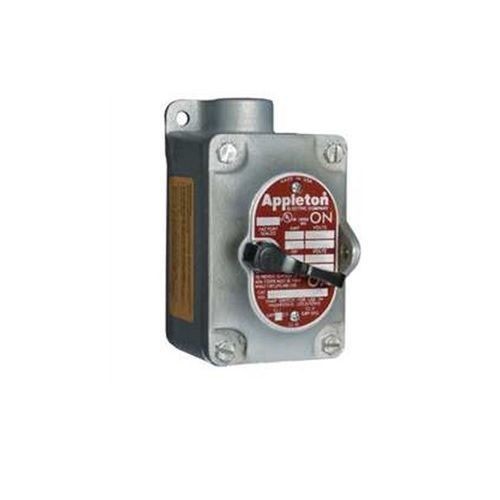

Appleton® UNILETS™ EDS175-F1 1-Gang Dead End Explosionproof Tumbler Switch, 120 to 277 VAC, 20 A, NEMA 7CD/9EFG NEMA Rating

Selected Appleton® UNILETS™ EDS175-F1 1-Gang Dead End Explosionproof Tumbler Switch, 120 to 277 VAC, 20 A, NEMA 7CD/9EFG NEMA Rating
Appleton® UNILETS™ EDS175-F1 1-Gang Dead End Explosionproof Tumbler Switch, 120 to 277 VAC, 20 A, NEMA 7CD/9EFG NEMA Rating

Documents

Short Description

EDS Series factory sealed tumbler switches prevent ignition of hazardous atmospheres by containing any arcing within a factory sealed enclosure. Many models are suitable for use in locations where Group B gases (hydrogen) are present. Front operated and side rocker arm models are available, and both types can be padlocked in either the on or off position.

Features

  • Corrosion resistant, strong stainless steel hex head cap screws attach cover/body/sealing chamber assembly for approved flame-tight construction
  • Enclosures have external mounting lugs for ease of mounting
  • Smooth, rounded integral bushing in each hub protects conductor insulation
  • Enclosures furnished with internal ground screw
  • Factory sealed switches are designed to a UL Standard so that any arcing devices are contained within an explosionproof labyrinth switch (standard switch and sealing chamber on select models)
  • Tumbler switch devices are approved for installation without additional external sealing fittings
  • 20 Amp 4-way and all 30 Amp models utilize a switch enclosed in separate sealing chamber
  • Smooth double-face, accurately ground surfaces on sealing chamber flange mate with cover and body to provide positive flame-tight construction
  • Sealing chamber has prewired factory sealed pigtail leads to switch
  • Threaded stainless steel operating handle provides positive corrosion resistant operation
  • Explosion proof, dust-ignition proof
  • Designed to prevent arcing of enclosed switches in ignitable atmospheres during connect and disconnect operation of lighting and light power loads
  • For use in classified areas where ignitable vapors, gases or highly combustible dusts are present. For installation in chemical plants, petrochemical plants, refineries, other process industries
  • Smooth ground mating surfaces assure flame-tight joint between cover and mounting enclosure. Stainless steel hex head cap screws for attaching cover to mounting enclosure. On/off legend marking
  • Each handle has close-tolerance threaded stainless steel shaft to meet explosion proof requirements. Designed to prevent arcing of enclosed switches in ignitable atmospheres during connect and disconnect operation of lighting and light power loads
  • 3/4 in dead-end hub
  • 1 gang
  • 1 hp at 120 VAC, 2 hp at 240 VAC
  • Nylon 6/6 handle. Triple-coat (zinc electroplate, chromate and epoxy powder coat) finish, Front operated lever actuator

Specification

Material
Malleable Iron
Mounting
Surface
Number Of Poles
1
Minimum Order Qty
1
Order Interval
1
Amperage Rating
20 A
Power Rating
2 hp
Series
EDS
Voltage Rating
120 to 277 VAC
Action
ON/OFF
Standard & Approvals
Class I Group B, Class I Groups C And D, Class II, Groups E F G, And Class III, RoHS Complaint, UL 894, UL 1203, E10523, E81751 UL Listed
Application
For use in classified areas where ignitable vapors, gases or highly combustible dusts are present
Enclosure
NEMA 7CD/9EFG
Dimensions
5.38 in H x 3 in W x 4.69 in D
Catalog ID
APPEDS175-F1
Actuator
Lever
