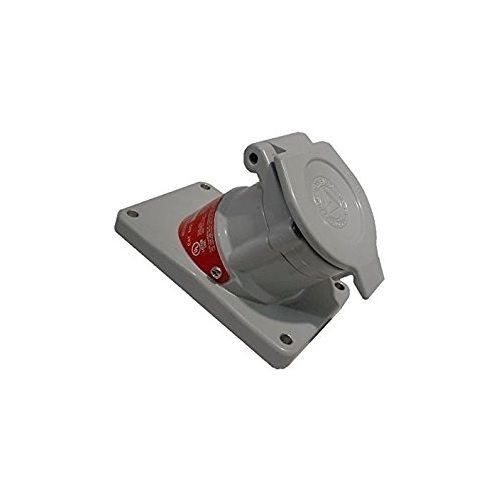

Appleton® U-Line™ EFSR-2023 Dust-Ignitionproof Explosionproof Receptacle Cover Assembly, 125 VAC, 20 A, 3 Poles, 2 Wires
Appleton® U-Line™ EFSR-2023 Dust-Ignitionproof Explosionproof Receptacle Cover Assembly, 125 VAC, 20 A, 3 Poles, 2 Wires
SKU: APPEFSR-2023
Manufacturer Part Number: EFSR-2023
UPC: 781381288057
Documents
Features
- Intermateable with competitor's plugs of like configurations
- Explosion proof, dust-ignition proof
- Factory sealed, external seals not required in most areas, arcing is safely confined to receptacle interior
- For lighting systems, conveyors, heaters, motor-generator sets, air conditioners, compressors, pumps
- Energized receptacle contacts deeply recessed to reduce danger of accidental touching
- Unique blade-type, brass contacts exert constant pressure along entire contact surface and provide superior electrical contact
- Insulators provide superior dielectric and mechanical strength and lowest arc tracking
- Glass-filled reinforced polyester insulating blocks
- Box mounting
- Copper-free (4/10 of 1% maximum) aluminum
- 1 gang
Specification
| Material | Aluminum |
|---|---|
| NEMA Rating | NEMA 3/3R |
| Number Of Poles | 3 |
| Number of Wires | 2 |
| Voltage Rating | 125 VAC |
| Application | For ECP mating plugs |
| Standard & Approvals | Class I, Division 1 and 2 Groups C, D, Class I, Division 2, Groups B, C, D; Class II, Division 1 and 2 Groups F, G, Class III, CSA C22.2 No.25, C22.2 No. 30, C22.2 No.42, C22 No.159 Certified File No. 038644, RoHS Compliant, UL 1203, 1010, 894 File No. E10784, E81751 Listed |
| Amperage Rating | 20 A |
| Dimensions | 4.63 in H x 3 in W x 3.19 in D |
| Horsepower | 1 hp |
