Appleton® UNILETS® ELBY75A Dust-Ignitionproof Explosionproof Capped Raintight Conduit Elbow, 3/4 in Trade, 90 deg, Aluminum, Epoxy Powder Coated

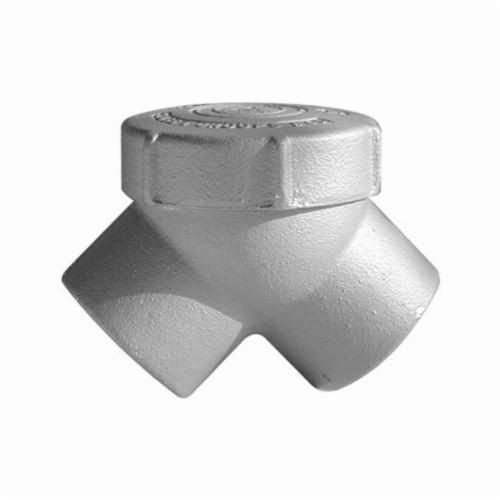

Selected ELBY-75Appleton® UNILETS® ELBY50A Dust-Ignitionproof Explosionproof Capped Raintight Conduit Elbow, 1/2 in Trade, 90 deg, Aluminum, Epoxy Powder Coated
ELBY-75Appleton® UNILETS® ELBY50A Dust-Ignitionproof Explosionproof Capped Raintight Conduit Elbow, 1/2 in Trade, 90 deg, Aluminum, Epoxy Powder Coated

Documents

Short Description

Appleton Group supplies conduit outlet boxes, pulling elbows and fittings to meet a wide range of classified location requirements. Most are available in a choice of triple coated malleable iron or epoxy powder-coated aluminum, providing exceptional durability and corrosion-resistance. We offer fittings with hub sizes from 1/2" through 4", with designs that facilitate pulling of even heavy, difficult to bend conductors.

Features

  • Serves as pulling fitting
  • Makes 90 deg bend in conduit runs
  • Screw-on cover for ease of installation and removal
  • Cover opens on an angle permitting conductors to be pulled straight through either hub
  • Can make 90deg turns in conduit where a compact turn is desired
  • Female threaded connection
  • Explosion proof dust-ignitionproof
  • Copper free aluminum
  • Class 1, Division 1 And 2, Groups C, D; Class II, Division 1 and 2, Groups E, F, G Class III

Specification

Material
Aluminum
Series
ELBY
Suitable For Use With
Threaded Metal Conduit
Trade Size
3/4 in
Standard & Approvals
UL 886 (1203), File No. E10444, CSA C22.2 No. 30, 065181, Class 1, Group B In Addition To Class I, Groups C, D; Class II, Groups E, F, G And Class III, RoHs Compliant
Dimensions
2.88 in L
Angle
90 deg
Finish
Epoxy Powder Coated
