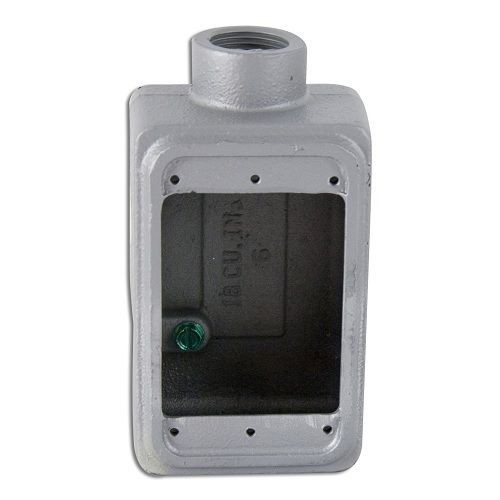

Appleton® Unilet® FS-1-75 Heavy Duty Device Box, Malleable Iron, 25 cu-in, 1 Gang, 1 Outlet, 1 Knockout
Appleton® Unilet® FS-1-75 Heavy Duty Device Box, Malleable Iron, 25 cu-in, 1 Gang, 1 Outlet, 1 Knockout
SKU: APPFS-1-75
Manufacturer Part Number: FS175
UPC: 781381341004
Short Description
Features
- Corrosion-resistant Ideal for indoor and outdoor installations
- Weatherproof, rain tight and dust-tight when used with cast gasketed covers
- FS and FD boxes take standard flush wiring devices
- FD boxes take devices exceeding 1.63/41.4 mm in depth under fastening ears
- Malleable iron for high tensile strength and ductility - provides greater resistance to impact and shock
- Both malleable iron and aluminum boxes have ridge top construction for positive cover/gasket/box fit
- Accurately tapped, tapered threads for tight, rigid joints, ground continuity
- Complete selection of covers, receptacles, plugs, gaskets and accessories
- Covers have captive stainless steel screws to speed installation, prevents loss of screws
- Internal grounding screws standard
- Available in single, two and three-gang and tandem
- Smooth, rounded integral bushing in each hub protects conductor insulation
- Accommodate wiring devices such as switches and receptacles
- Provide excellent service in areas where boxes are subject to rough usage
- Serve as pull boxes for conductors
- Permit access to conductors for maintenance
- Provide openings for making splices
- Allow connections for branch conduit runs
- Blank bodies for special conduit entrance arrangements
- (1) 3/4 in hub cable entry|Triple Coat With Zinc Electroplate/Chromate/Epoxy Powder Coat|Without Knockout
Specification
| Hub Size | 3/4 in |
|---|---|
| Hub Style | Tapered Threaded |
| Knockout Size | 3/4 in |
| Material | Malleable Iron |
| Number of Gangs | 1 |
| Number of Knockouts | 1 |
| Number of Outlets | 1 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Cable Entry | Hub |
| Capacity | 25 cu-in |
| Enclosure Type | NEMA FB-1 |
| Finish | Triple Coat |
| Series | FS |
| Shape | Shallow |
| Type | Heavy Duty |
| Includes | Mounting Lugs and Internal Ground Screw |
| Standard & Approvals | UL 514A, E2527, CSA C22.2 No 18.1, 001472, NEMA FB-1, RoHS Compliant |
| Application | For use with threaded rigid/IMC conduit |
| Dimensions | 4.56 in H x 2.81 in W x 2 in D |
| Catalog ID | APPFS-1-75 |
