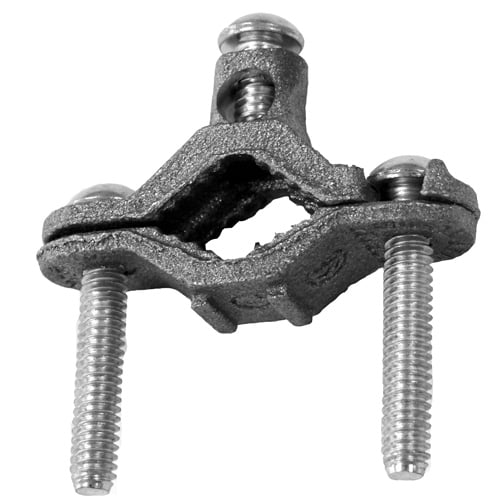

Appleton® NEER™ GC-2 Ground Clamp, 1-1/4 to 2 in Conduit, 10 AWG Solid to 2 AWG Stranded/8 to 2 AWG Stranded Aluminum Conductor, Cast Bronze Alloy
Appleton® NEER™ GC-2 Ground Clamp, 1-1/4 to 2 in Conduit, 10 AWG Solid to 2 AWG Stranded/8 to 2 AWG Stranded Aluminum Conductor, Cast Bronze Alloy
SKU: NEEGC-2
Manufacturer Part Number: GC-2
UPC: 687855250028
Documents
Features
- Steel plated screw
- 1/4 - 2 in trade size
- 0.33 in hole diameter
- 1.38 - 2.97 in clamp range
- 1.38 in min opening
- 2.9 in max opening
- For insulated or bare conductor wire, copper 10 AWG solid - 2 AWG stranded, aluminum 8 AWG stranded - 2 AWG stranded
- Clamp is reversible
- 10 AWG solid - 2 AWG stranded
- Made of Cast Bronze Alloy
Specification
| Material | Bronze |
|---|---|
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | NEEGC-2 |
| Conductor Size | 10 to 2 AWG |
| Conductor Type | Bare Copper |
| Dimensions | 3.62 in L |
| Series | GC |
| Application | Bare Copper Conductor, Used on Water Pipes, Conduits and Pipe Electrodes |
| Standard & Approvals | UL standard: 467, UL Listed E37337, CsA standard C22.2 No 41, CsA Certified 208044, NEMA FB-1, RoHs Compliant |
