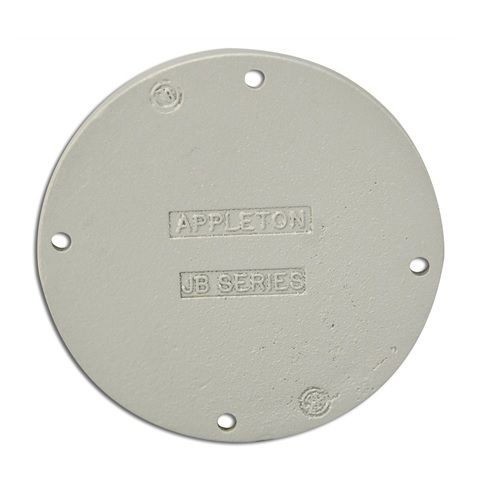

Appleton® JBK-B Cast Device Box Cover, 4 in Dia, Blank Cover, Malleable Iron

Selected Appleton® JBK-B Cast Device Box Cover, 4 in Dia, Blank Cover, Malleable Iron
Appleton® JBK-B Cast Device Box Cover, 4 in Dia, Blank Cover, Malleable Iron

Documents

Short Description

Appleton Group conduit outlet bodies and boxes, pulling elbows, junction and device boxes, covers, hangers and accessories are recognized worldwide for their high quality materials and construction, accurately tapped and tapered threads, durable finishes, and ease of installation and wiring. With the industry’s most extensive selections and options, we are the single source for all the fittings required to complete any job.

Features

  • Raintight when enclosed and gasketed with hub or blank covers
  • Furnished with internal ground screw
  • Blind cover screw holes prevent conductor damage during installation, provide water-tightness
  • Order with or without mounting lugs
  • Furnished with four tapped holes and two close-up plugs
  • Cushion fixture hangers are enclosed and gasketed
  • Malleable iron covers are triple-coat -(1) zinc electroplate, (2) chromate and (3) epoxy powder coat
  • Supports 250 lb
  • Serve as pulling fittings
  • Provide openings for splicing
  • Make straight connections and 90 deg bends in conduit runs
  • Permit access to conductors for maintenance
  • Triple-Coat (zinc electroplate, chromate and epoxy powder coat)

Specification

Material
Malleable Iron
Mounting Type
Surface
Minimum Order Qty
1
Order Interval
1
Catalog ID
APPJBK-B
Diameter
4 in
Finish
Triple Coat
Shape
Round
Type
Blank Cast
Application
For UNILETS® JB conduit outlet boxes
Standard & Approvals
RoHS Compliant
