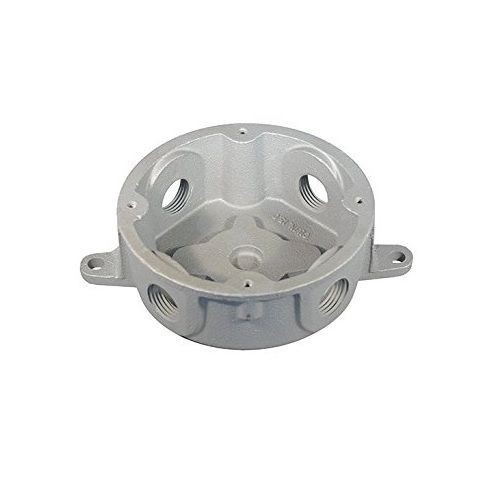

Appleton® UNILETS™ JBX-75L Conduit Outlet Box With Mounting Lugs, 3/4 in Hub, Malleable Iron, Triple Coated

Selected Appleton® UNILETS™ JBX-75L Conduit Outlet Box With Mounting Lugs, 3/4 in Hub, Malleable Iron, Triple Coated
Appleton® UNILETS™ JBX-75L Conduit Outlet Box With Mounting Lugs, 3/4 in Hub, Malleable Iron, Triple Coated

Documents

Short Description

Appleton Group provides a complete selection of conduit bodies, outlet boxes, device boxes, cable glands and other fittings for both hazardous and ordinary locations. A variety of materials and styles are available to suit your needs for weather and corrosion-resistance. Whether you are wiring an office building or an offshore oil platform, Appleton Group has all the top quality components you need.

Features

  • Make straight connections and 90 deg bends in conduit runs
  • Permit access to conductors for maintenance
  • Raintight when enclosed and gasketed with hub or blank covers
  • Furnished with internal ground screw
  • Blind cover screw holes prevent conductor damage during installation, provide water-tightness
  • Furnished with four tapped holes and two close-up plugs
  • Cushion fixture hangers are enclosed and gasketed
  • Furnished with four tapped openings and two close-up plugs
  • (4) 3/4 in tapped openings cable entry
  • Knockouts
  • Triple Coat (Zinc electro plated Chromate and Epoxy Powder Coated)

Specification

Hub Size
3/4 in
Material
Malleable Iron
Mounting Type
Lug
Number of Gangs
4
Minimum Order Qty
1
Order Interval
1
Capacity
15.5 cu-in
Catalog ID
APPJBX-75L
Color
Gray
Dimensions
6.13 in H x 1.63 in W
Finish
Triple Coat
Suitable For Use With
Threaded Rigid Metal and IMC Conduit
Application
To serve as pulling fittings and provide openings for splicing
Standard & Approvals
UL 514A, UL E2527, NEMA FB-1, RoHs Compliant
