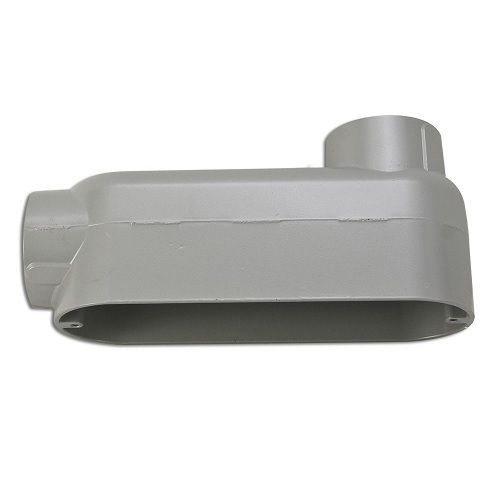

Appleton® UNILETS™ LB200-A Type LB Conduit Outlet Body, 2 in Hub, 85, 70 cu-in, Pressure Cast Aluminum, Epoxy Powder Coated
Appleton® UNILETS™ LB200-A Type LB Conduit Outlet Body, 2 in Hub, 85, 70 cu-in, Pressure Cast Aluminum, Epoxy Powder Coated
SKU: APPLB200-A
Manufacturer Part Number: LB200-A
UPC: 781381477000
Documents
Short Description
Features
- Serve as pulling fittings
- Make bends in conduit system
- Provide openings for splicing
- Connect and change direction of conduit runs
- Allow connections for branch runs
- Permit access to conductors for maintenance
- Smooth, rounded integral bushing in each hub protects conductor insulation
- Roomy interiors more wiring space
- Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
- Form 85 copper free aluminum unilets are lightweight, self oxidizing, self-renewing and offer a high corrosion resistance
- Lightweight aluminum facilitates shipping, handling and installing
- Sizes with flat-back design ideal where fitting is mounted flat against surface
- Internal volume and maximum wire capacity clearly marked on castings
- Threaded style is raintight when used with casketed covers
- Set screw type has slotted hex head steel hardened cup-point set screw for EMT
- Stainless steel screw, neoprene or composition fiber gasket
- Pressure Cast Aluminum
Specification
| Hub Size | 2 in |
|---|---|
| Material | Aluminum |
| Mounting Type | Surface |
| Number of Hubs | 2 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Capacity | 70 cu-in |
| Catalog ID | APPLB200-A |
| Connection Type | Tapered FNPT |
| Dimensions | 10.19 in L x 4.56 in H |
| Enclosure | NEMA FB-1 |
| Finish | Epoxy Powder Coated |
| Form | 85 |
| Type | Type LB |
| Application | For Rigid/IMC and EMT Conduit |
| Standard & Approvals | UL 514B, E2527 Listed, CSA C22.2 NO 18.3 Certified, 065183 Certified, RoHS Compliant |
