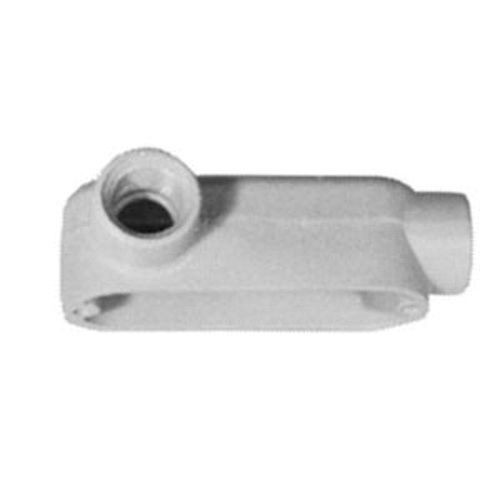

Appleton® UNILETS™ LL75A Type LL Conduit Outlet Body, 3/4 in Hub, Form 85, 7 cu-in, Pressure Cast Aluminum, Epoxy Powder Coated
Appleton® UNILETS™ LL75A Type LL Conduit Outlet Body, 3/4 in Hub, Form 85, 7 cu-in, Pressure Cast Aluminum, Epoxy Powder Coated
SKU: APPLL75-A
Manufacturer Part Number: LL75A
UPC: 781381479851
Documents
Short Description
Features
- Smooth, rounded integral bushing in hubs protects conductor insulation
- Roomy interiors more wiring space
- Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
- Form 85™ copper free aluminum UNILETS™ are lightweight, self oxidizing, self-renewing and offer a high corrosion resistance
- Lightweight aluminum facilitates shipping, handling and installing
- Sizes with flat back design ideal where fitting is mounted flat against surface
- Internal volume and maximum wire capacity clearly marked on castings
- Threaded style is raintight when used with casketed covers
Specification
| Hub Size | 3/4 in |
|---|---|
| Material | Pressure Cast Aluminum |
| Mounting Type | Surface |
| Number of Hubs | 2 |
| Type | Type LL |
| Application | For Rigid Steel/Aluminum, IMC and EMT Conduit |
| Standard & Approvals | UL 514A/514B/E2527, C22.2 No. 18.3/065183 Certified, RoHS Compliant |
| Dimensions | 5.13 in L x 2.25 in W x 2.44 in H |
| Capacity | 7 cu-in |
| Connection Type | Tapered FNPT |
| Enclosure | NEMA FB-1 |
| Finish | Epoxy Powder Coated |
| Form | Form 85 |
