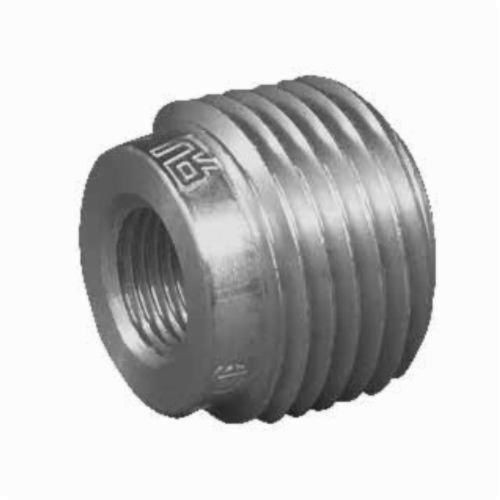

Appleton® RB150-75A Reducing Bushing, 1-1/2 x 3/4 in Trade, Aluminum, Natural
Appleton® RB150-75A Reducing Bushing, 1-1/2 x 3/4 in Trade, Aluminum, Natural
SKU: APPRB150-75A
Manufacturer Part Number: RB150-75A
UPC: 781381321129
Documents
Features
- Smooth, rounded integral bushing protects conductor insulation
- Full, machined tapered threads NPT
- Dust-ignitionproof and explosion proof
Specification
| Material | Aluminum |
|---|---|
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Size | 1-1/2 x 3/4 in |
| Series | RB Series |
| Finish | Natural |
| Dimensions | 13/16 in L |
| Catalog ID | APPRB150-75A |
| Standard & Approvals | UL 886 (1203), UL E10444, CSA C22.2 No. 25, C22.2 No. 30, CSA 065181, Class I, Division 1 and 2, Groups A, B, C, D; Class I, Zone 1 and, 2, Groups IIA, IIB, IIC; Class II, Division 1 and 2, Groups E, F, G; Class III NEC/CEC Certified |
| Application | Designed to reduce conduit hubs to a smaller size and are used in threaded rigid and IMC conduit systems |
| Suitable For Use With | Threaded RMC and IMC Conduit System |
| Trade Size | 1-1/2 x 3/4 in |
