Appleton® ST-4550L ST Series Non-Insulated Liquid Tight Conduit Connector With External Grounding Lug, 1/2 in Trade, 45 deg, Malleable Iron, Electroplated Zinc

Selected Appleton ST 4575L

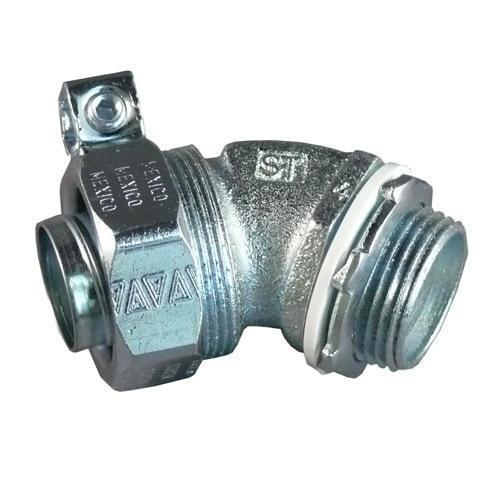

Appleton ST 4575L

Documents

Short Description

Appleton® offers a full range of Class I Division 2 Liquidtight connectors ideally suited for OEM equipment, as well as harsh and corrosive environments. With only three main parts the body, long-throat crimpable ferrule and compression nut Appleton® ST connectors are, at minimum, 25% quicker to install than the competitor's. In addition, the breadth of Appleton® ST Liquidtight product line offers a vast range of trade sizes, configurations, and male and female versions in both aluminum and steel. For all these reasons, Appleton® is the top choice whenever a secure, safe connection is paramount.

Features

  • Malleable iron and/or steel construction, steel or aluminum ferrule, polypropylene sealing ring
  • Unique long ferrule with pronounced threads provides over four times UL pull out requirements
  • Ferrule provides maximum surface contact for better sealing and a continuous, permanent, positive metal to metal ground
  • Adequately sized bonded lugs provide excellent grounding continuity and allow for visible ground path inspection
  • Liquidtight, raintight and oiltight
  • Suitable for outdoor use
  • Full, machined tapered threads (npt)
  • Straight, 45 and 90 deg styles available in trade sizes 3/8 through 4 in
  • Machine tool building, motor and transformer terminations, robotics assembly, air conditioning equipment installation and other applications that require flexibility and protection against entry of liquids, vapors or solids
  • ST-L Series has plain throat, STB-L Series has insulated throat to protect against wire damage
  • Suitable for use in hazardous locations Class I, Division 2, Class II, Div. 1 and 2, Class III, Div. 1 and 2, NEC 501-4(b), 502-4(a)(2), 503-3(a)
  • 0.63 in L thread
  • Zinc electroplate, dichromate and epoxy powder/zinc electroplate

Specification

Type
Non-Insulated
Material
Malleable Iron
Finish
Electroplated Zinc
Trade Size
1/2 in
Suitable For Use With
Liquid Tight Flexible Metal Conduit Fitting
Series
ST Series
Angle
45 deg
Dimensions
1-1/4 in W
