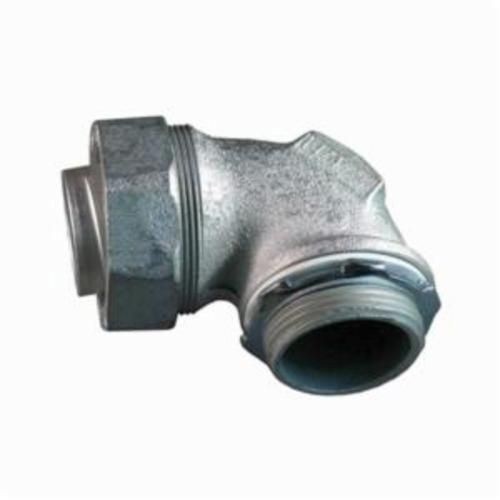

Appleton® ST-90125 Liquid Tight Oiltight Raintight Conduit Connector With Plain Throat, 1-1/4 in Trade, 90 deg, Malleable Iron, Triple Coated

Selected ST-90400Appleton® ST-90125 Liquid Tight Oiltight Raintight Conduit Connector With Plain Throat, 1-1/4 in Trade, 90 deg, Malleable Iron, Triple Coated
ST-90400Appleton® ST-90125 Liquid Tight Oiltight Raintight Conduit Connector With Plain Throat, 1-1/4 in Trade, 90 deg, Malleable Iron, Triple Coated

Documents

Short Description

For providing safe electrical service in areas exposed to weather, water, oil, dirt and other contaminants, we offer a full line of connectors, hubs and accessories for use with liquid-tight flexible metal conduit. Aluminum, steel, zinc and nonmetallic connectors are available, with a variety of options including straight, 45 deg and 90 deg angle fittings with or without insulated throats, external grounding lugs and stainless steel wire mesh strain relief.

Features

  • Unique long ferrule with more pronounced threads provides over four times UL pull-out requirements
  • Ferrule provides maximum surface contact for better sealing and a continuous, permanent, positive metal-to-metal ground
  • Polypropylene sealing ring with locknut standard
  • Liquid tight/raintight/oiltight
  • Full, machined tapered threads (NPT)
  • Compact design with small turning radius
  • Seals out oil, water, dust, dirt and fumes
  • Threaded x compression connection
  • 0.63 in L thread
  • Malleable iron with aluminum ferrule

Specification

Material
Malleable Iron
Minimum Order Qty
1
Order Interval
1
Angle
90 deg
Catalog ID
APPST-90125
Dimensions
2.31 in W
Finish
Zinc Electroplated/Chromate Epoxy Powder Coated
Suitable For Use With
Liquidtight Flexible Metallic Conduit
Trade Size
1-1/4 in
Standard & Approvals
UL 514B, UL E14814, CSA C22.2 No. 18.3, CSA 065178 and NEMA FB-1
Application
Wet Locations
