Appleton® STB-100 Liquid Tight Oiltight Raintight Conduit Connector With Insulated Throat, 1 in Trade, Straight, Steel, Zinc Electroplated

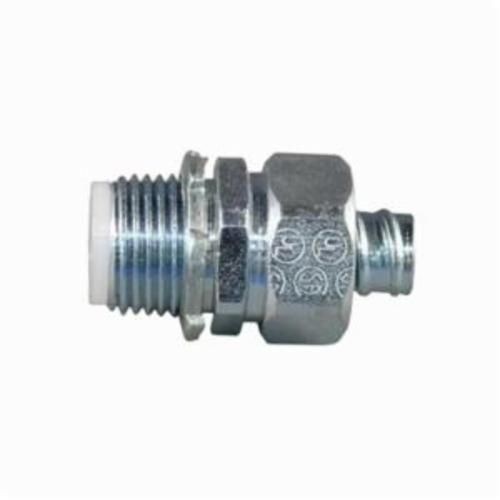

Selected STB-75Appleton® STB-75 Liquid Tight Oiltight Raintight Conduit Connector With Insulated Throat, 3/4 in Trade, Straight, Steel, Zinc Electroplated
STB-75Appleton® STB-75 Liquid Tight Oiltight Raintight Conduit Connector With Insulated Throat, 3/4 in Trade, Straight, Steel, Zinc Electroplated

Documents

Short Description

For providing safe electrical service in areas exposed to weather, water, oil, dirt and other contaminants, we offer a full line of connectors, hubs and accessories for use with liquid-tight flexible metal conduit. Aluminum, steel, zinc and nonmetallic connectors are available, with a variety of options including straight, 45 deg and 90 deg angle fittings with or without insulated throats, external grounding lugs and stainless steel wire mesh strain relief.

Features

  • Unique long ferrule with more pronounced threads provides over four times UL pull-out requirements
  • Ferrule provides maximum surface contact for better sealing and a continuous, permanent, positive metal-to-metal ground
  • Polypropylene sealing ring with locknut standard
  • Liquid tight/raintight/oiltight
  • Suitable for wet locations
  • Full, machined tapered threads (NPT)
  • Compact design with small turning radius
  • Seals out oil, water, dust, dirt and fumes; High corrosion resistance
  • Threaded x compression connection
  • 0.75 in L thread

Specification

Material
Steel
Minimum Order Qty
1
Order Interval
1
Angle
Straight
Catalog ID
APPSTB-100
Dimensions
1.63 in L x 1.81 in H
Finish
Zinc Electroplated
Suitable For Use With
Liquidtight Flexible Metallic Conduit
Trade Size
1 in
Type
Insulated Throat
Application
Provides a dependable connection for liquid-tight flexible metal conduit
Standard & Approvals
UL 514B, UL E14814, CSA C22.2 No. 18.3, CSA 065178 and NEMA FB-1, RoHS Complaint
