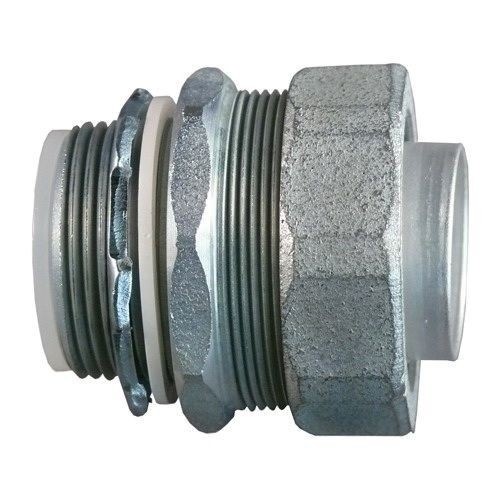

Appleton® STB-200 Liquid Tight Oiltight Raintight Conduit Connector With Insulated Throat, 2 in Trade, Straight, Malleable Iron, Triple Coated
Appleton® STB-200 Liquid Tight Oiltight Raintight Conduit Connector With Insulated Throat, 2 in Trade, Straight, Malleable Iron, Triple Coated
SKU: APPSTB-200
Manufacturer Part Number: STB-200
UPC: 781381681209
Documents
Features
- Unique long ferrule with more pronounced threads provides over four times UL pull out requirements
- Ferrule also provides maximum surface contact for better sealing and a continuous, permanent, positive metal to metal ground
- Polypropylene sealing ring with locknut standard
- Full, machined tapered threads (NPT)
- Compact design with small turning radius
- Seals out oil, water, dust, dirt and fumes
- Suitable for wet locations
- Chromate/epoxy powder coated/zinc electroplated finish
Specification
| Material | Malleable Iron |
|---|---|
| Series | STB |
| Suitable For Use With | Liquidtight Flexible Metallic Conduit |
| Trade Size | 2 in |
| Type | Liquidtight Oiltight Raintight |
| Application | Machine Tool Building, Motor and Transformer Terminations, Robotics Assembly and Air Conditioning Equipment Installation |
| Standard & Approvals | UL 514B, UL E14814, CSA C22.2 No. 18.3, CSA 065178, Class I, Division 2, RoHS Compliant |
| Dimensions | 2.5 in L x 3.19 in H |
| Angle | Straight |
| Finish | Triple Coated |
