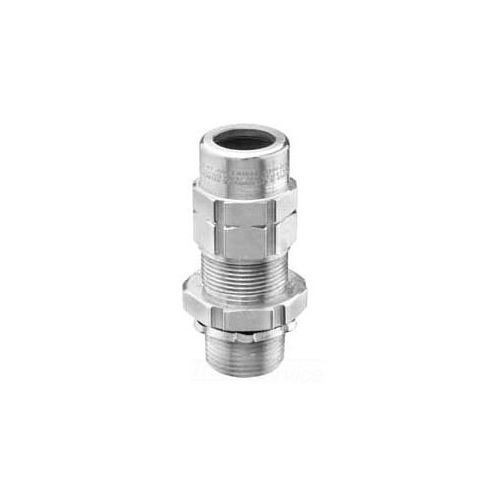

Appleton® TMC2-050099A TMC2 Cable Gland Connector, 1/2 in Trade, 0.69 to 0.99 in Cable Openings, Copper Free Aluminum
Appleton® TMC2-050099A TMC2 Cable Gland Connector, 1/2 in Trade, 0.69 to 0.99 in Cable Openings, Copper Free Aluminum
SKU: APPTMC2-050099A
Manufacturer Part Number: TMC2-050099A
UPC: 781381300704
Short Description
Features
- Simplified two-piece design
- Integral ’O’ ring face seal providing - 4X and IP66
- Independent sealing and armor clamping
- True 360 deg grounding
- Removable cable armor end stop accommodates larger insulated conductors
- Superior pullout prevention, compact slim profile
- Reduced installation time (no disassembly required)
- Widest cable acceptance range, reusable design
- Additional integral deluge proof seal for protection in extreme offshore and onshore environments
- Provide a means for terminating jacketed type MC cable, forming a mechanical watertight connection and providing ground continuity for cable armor
- Stainless steel grounding spring, LSF-TPE (halogen free) bushing, nylon end stop washer, viton O-ring
- 1.48 in across corner flat x 1.6 in across corner
- 0.6 - 0.89 in cable armor diameter
- 0.78 in thread length
- 1.97 in L nominal assembly
- Copper Free Aluminum
Specification
| Material | Aluminum |
|---|---|
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Video | https://www.youtube.com/watch?v=zWp_kg_Nqak |
| Cable Openings | 0.69 - 0.99 in |
| Cable Type | MC/Teck |
| Catalog ID | APPTMC2-050099A |
| Connection Type | NPT |
| Dimensions | 1.48 in Dia Across Flat x 1.6 in Dia Across Corner x 2.75 in L |
| Series | TMC2 |
| Temperature Rating | -60 to 110 deg C |
| Trade Size | 1/2 in |
| Standard & Approvals | UL 514B, 2225 Listed, CSA 249506, C22.2 No 174 Certified, Class I, Division 2, Groups A, B, C, D, Class I, Zones 1 and 2, AExe II AEx tA IIC, Class I, Zones 1 and 2, Exe II Ex tA IIC, Class II, Divisions 1 and 2, Groups E, F, G, Class III, Divisions 1 and 2, RoHs Compliant |
| Application | For MC/MCHL, corrugated interlocked aluminum/steel armor, continuously welded armor cable like Teck/CLX |
