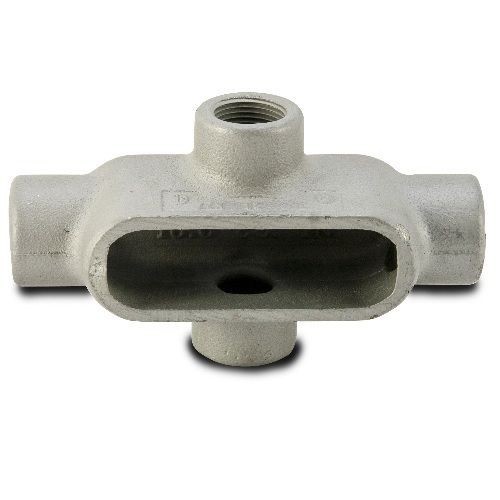

Appleton® UNILETS™ X37 Type X Conduit Outlet Body, 1 in Hub, Form 7, 15.5 cu-in, Grayloy Iron, Triple Coated
Appleton® UNILETS™ X37 Type X Conduit Outlet Body, 1 in Hub, Form 7, 15.5 cu-in, Grayloy Iron, Triple Coated
SKU: APPX37
Manufacturer Part Number: X37
UPC: 781381507363
Documents
Short Description
Features
- Serve as pulling fittings
- Provide openings for splicing
- Connect and change direction of conduit runs
- Allow connections for branch runs
- Permit access to conductors for maintenance
- Smooth, rounded integral bushing in each hub protects conductor insulation
- Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
- Completely interchangeable with Crouse-Hinds Form 7 bodies, gaskets and covers
- Equivalent FM7 and Form 7 units have identical applications and installation dimensions
- Flat back design provides greater cubic content for easier wire pulling and more room for splicing
- Fits flush and snug against flat surfaces for more stable installation
- Smooth hub bushings and cover openings protect conductor insulation, smooth hub openings allow easy conduit joining
- Pan-head cover screws secure cover clips and provide superior screwdriver seating and torque, cover screws and clips are captive to prevent loss
- Hub size, body style, compliance data, maximum wire number/size and cubic capacity molded into body
- Triple Coat (Zinc Electroplated, Chromate and Epoxy Powder Coated) finish
Specification
| Hub Size | 1 in |
|---|---|
| Material | Grayloy Iron |
| Number of Hubs | 4 |
| Type | Type X |
| Standard & Approvals | UL 514A, 514B, E2527 Listed, CSA C22.2 NO 18.3 Certified, CSA 065183 Certified, RoHS Compliant |
| Dimensions | 7.25 in L x 3.88 in W x 2.25 in H |
| Application | For rigid steel, rigid aluminum and IMC conduit and used to make bends in conduit system |
| Capacity | 15.5 cu-in |
| Color | Gray |
| Connection Type | Tapered FNPT |
| Enclosure | NEMA FB-1 |
| Finish | Triple Coat |
| Form | 7 |
