Appleton® 4QS-950T Liquid Tight Oiltight Raintight Conduit Connector With Insulated Throat, 1/2 in Trade, 90 deg, Malleable Iron, Zinc Electroplated

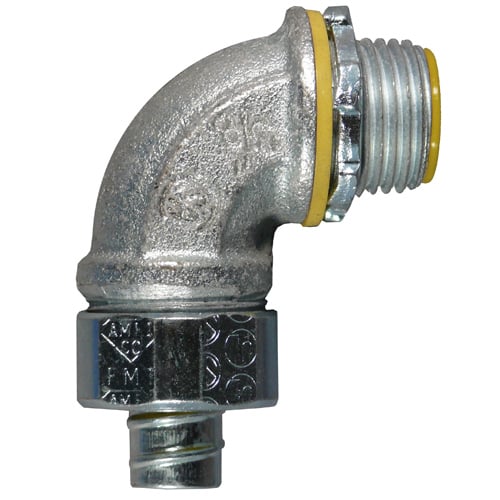

Selected Data-Spec SheetAppleton® 4QS-950T Liquid Tight Oiltight Raintight Conduit Connector With Insulated Throat, 1/2 in Trade, 90 deg, Malleable Iron, Zinc Electroplated
Data-Spec SheetAppleton® 4QS-950T Liquid Tight Oiltight Raintight Conduit Connector With Insulated Throat, 1/2 in Trade, 90 deg, Malleable Iron, Zinc Electroplated

Documents

Short Description

For providing safe electrical service in areas exposed to weather, water, oil, dirt and other contaminants, we offer a full line of connectors, hubs and accessories for use with liquid-tight flexible metal conduit. Aluminum, steel, zinc and nonmetallic connectors are available, with a variety of options including straight, 45 deg and 90 deg angle fittings with or without insulated throats, external grounding lugs and stainless steel wire mesh strain relief.

Features

  • Male NPT taper threaded connection
  • Insulated throat
  • Suitable for wet Locations
  • Suitable for use in class I, division 2 locations
  • Furnished with locknut and sealing ring
  • Compact, slim diameter with small turning radius
  • Liquid tight/Raintight/Oiltight
  • Long ferrule prevents pullout and tight bend conduit pop-out
  • Reusable ferrule
  • Raintight environmental conditions
  • 0.54 in L thread

Specification

Material
Malleable Iron
Suitable For Use With
Liquidtight Flexible Metallic Conduit
Trade Size
1/2 in
Application
For Terminating Liquid tight Flexible Metal Conduit to a Enclosure at a 90 Degree Angle
Standard & Approvals
RoHS Compliant, UL Standard: 514B; UL Listed: E11853; CSA Standard: C22.2 No. 18.3; CSA Certified: 009795,NEMA: FB-1
Dimensions
1.36 in W
Angle
90 deg
Color
Metallic
Finish
Zinc Electroplated
