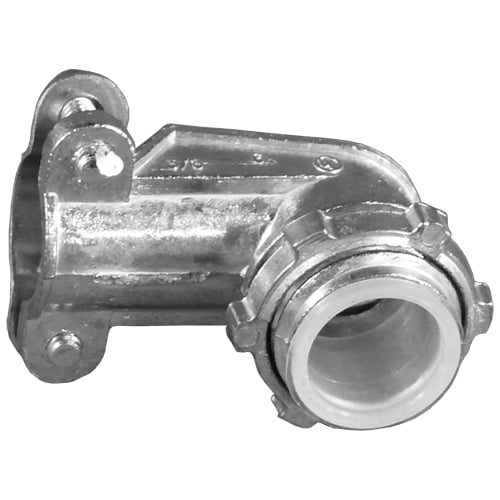

Appleton® NEER™ AC-250-D Non-Insulated Conduit Connector With Locknut, 2-1/2 in Trade, For Use With Armored/FMC/Metal Clad Cable, Die Cast Zinc, Natural/Zinc Plated

Selected Data-Spec SheetAppleton® NEER™ AC-250-D Non-Insulated Conduit Connector With Locknut, 2-1/2 in Trade, For Use With Armored/FMC/Metal Clad Cable, Die Cast Zinc, Natural/Zinc Plated
Data-Spec SheetAppleton® NEER™ AC-250-D Non-Insulated Conduit Connector With Locknut, 2-1/2 in Trade, For Use With Armored/FMC/Metal Clad Cable, Die Cast Zinc, Natural/Zinc Plated

Documents

Features

  • Male NPS thread connection
  • 0.87 in thread length
  • Zinc plated steel cover
  • All centre stopped
  • Single cable opening
  • Two screw

Specification

Material
Die Cast Zinc
Mounting Type
Clamp
Minimum Order Qty
1
Order Interval
1
Angle
90 deg
Color
Metallic
Finish
Natural
Series
AC
Suitable For Use With
Armored Cable, Flexible Metal Conduit and Metal Clad Cable
Trade Size
2-1/2 in
Type
Non-Insulated
Application
To make a 90 deg termination of conduit or cable into knockout or unthreaded slip hole in a dry location
Standard & Approvals
UL 514B/E25014 Listed, CSA 208044/C22.2 No 18.3 Certified, NEMA FB-1, RoHS Complaint
Dimensions
6.12 in L x 7.19 in H
Catalog ID
NEEAC-250-D
