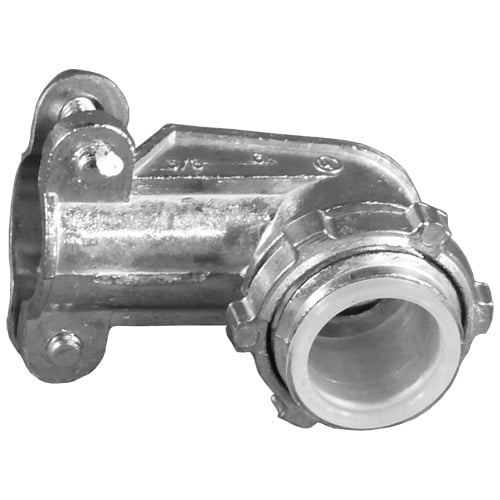

Appleton® NEER™ AC95 Non-Insulated Conduit Connector With Locknut, 1/2 in Trade, For Use With Armored/FMC/Metal Clad Cable, Die Cast Zinc, Natural/Zinc Plated
Appleton® NEER™ AC95 Non-Insulated Conduit Connector With Locknut, 1/2 in Trade, For Use With Armored/FMC/Metal Clad Cable, Die Cast Zinc, Natural/Zinc Plated
SKU: NEEAC-95
Manufacturer Part Number: AC95
UPC: 687855100958
Documents
Features
- Male NPS thread connection
- 0.42 in thread length
- Zinc plated steel cover
- All centre stopped
- Two screw
Specification
| Material | Die Cast Zinc |
|---|---|
| Mounting Type | Clamp |
| Series | AC |
| Suitable For Use With | Armored Cable, Flexible Metal Conduit and Metal Clad Cable |
| Trade Size | 1/2 in |
| Type | Non-Insulated |
| Application | To make a 90 deg termination of conduit or cable into knockout or unthreaded slip hole in a dry location |
| Standard & Approvals | UL 514B/E25014 Listed, CSA 208044/C22.2 No 18.3 Certified, NEMA FB-1, RoHS Complaint |
| Dimensions | 1.51 in L x 2.12 in H |
| Angle | 90 deg |
| Color | Metallic |
| Finish | Natural |
