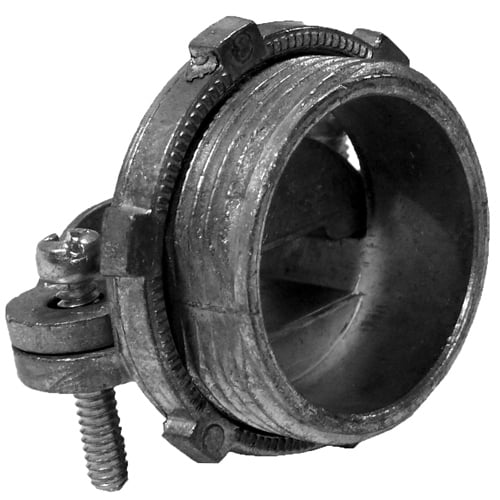

Appleton® NEER™ C-1500 2-Screw Service Entrance Cable Connector, 1-1/2 in Knockout, 3 to 2/0 AWG Conductor, Die Cast Zinc

Selected Data-Spec SheetAppleton® NEER™ C-1500 2-Screw Service Entrance Cable Connector, 1-1/2 in Knockout, 3 to 2/0 AWG Conductor, Die Cast Zinc
Data-Spec SheetAppleton® NEER™ C-1500 2-Screw Service Entrance Cable Connector, 1-1/2 in Knockout, 3 to 2/0 AWG Conductor, Die Cast Zinc

Documents

Features

  • Zinc die cast clamp
  • Steel/zinc-plated screw
  • Male Hub Threads - NPS
  • For 3-2/0 AWG Oval Service Entrance Cable

Specification

Knockout Size
1-1/2 in
Material
Die Cast Zinc
Suitable For Use With
Oval Service Entrance Cable
Trade Size
1-1/2 in
Type
Two Screw
Application
To terminate oval type se or type use cable
Standard & Approvals
UL 514B Listed, E25015, CSA C22.2 No 18.3, 208044, NEMA FB-1, RoHS Complaint
Conductor Size
3-2/0 AWG
Dimensions
2.01 in Dia x 1.33 in L
