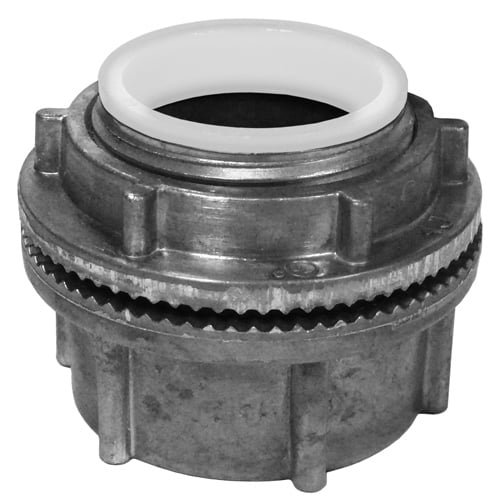

Appleton® NEER™ HUB125DN Watertight Conduit Hub, 1-1/4 in, For Use With IMC/Rigid Conduit, Die Cast Zinc

Selected Data-Spec SheetAppleton® NEER™ HUB125DN Watertight Conduit Hub, 1-1/4 in, For Use With IMC/Rigid Conduit, Die Cast Zinc
Data-Spec SheetAppleton® NEER™ HUB125DN Watertight Conduit Hub, 1-1/4 in, For Use With IMC/Rigid Conduit, Die Cast Zinc

Documents

Short Description

We offer a complete selection of steel, malleable iron and zinc fittings for rigid conduit and IMC. threaded and threadless, insulated or uninsulated non-insulated, watertight or general purpose, our conduit fittings, straps and accessories are available in all the sizes and configurations required to connect and support rigid conduit and to bond it to virtually any type of junction box or enclosure.

Features

  • Buna-N o-ring, polycarbonate insulator, mild steel ground screw
  • Insulated throat, rated up to +105 deg C (+221 deg F), prevents wire abrasion
  • Integral o-ring provides watertight seal
  • Grounding version provides positive ground for external conductor
  • Unique profile permits easy wrenching
  • Smooth, accurately tapped threads facilitate installation
  • Watertight and corrosion resistant
  • NEMA types 2, 3, 3R, 4, 4X, 5, 12, 13
  • May be used in wet or dry locations, indoors or outdoors
  • 1.67 - 1.77 in hole diameter
  • 0.03 - 0.25 in panel thickness
  • 1.75 in knockout hole size

Specification

Material
Die Cast Zinc
Series
HUB
Size
1-1/4 in
Suitable For Use With
Rigid/IMC Conduit
Application
For use to connect rigid metal conduit or imc to a threadless opening in an enclosure
Standard & Approvals
UL 514B Listed, UL E14814, E24264, E11853, CSA Standard C22.2 No 18.3, CSA Certified 065178, NEMA FB-1, Class I, Division 2, Class II, Divisions 1 and 2, Class III, per NEC 501.10(B)(4), 502.10(A)(3), 502.10(B)(4), 503.10(A)(1), RoHS Compliant
Dimensions
2.38 in OD x 1.9 in L
