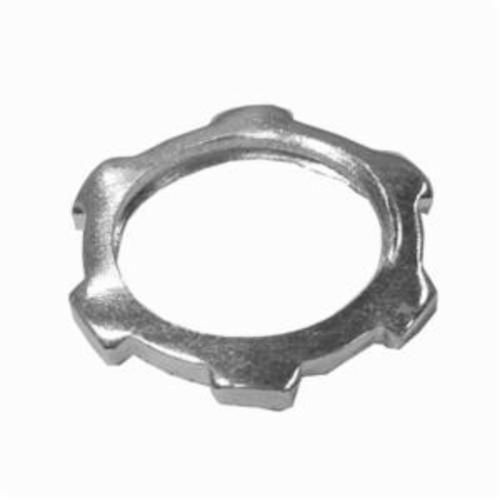

Appleton® NEER™ L-900 L Series Standard Conduit Locknut, 3-1/2 in NPSL, For Use With Threaded Conduit/Connectors, Steel, Electro-Zinc Plated

Selected L-900Appleton® NEER™ L-900 L Series Standard Conduit Locknut, 3-1/2 in NPSL, For Use With Threaded Conduit/Connectors, Steel, Electro-Zinc Plated
L-900Appleton® NEER™ L-900 L Series Standard Conduit Locknut, 3-1/2 in NPSL, For Use With Threaded Conduit/Connectors, Steel, Electro-Zinc Plated

Documents

Short Description

We offer a complete selection of steel, malleable iron and zinc fittings for rigid conduit and IMC. threaded and threadless, insulated or uninsulated non-insulated, watertight or general purpose, our conduit fittings, straps and accessories are available in all the sizes and configurations required to connect and support rigid conduit and to bond it to virtually any type of junction box or enclosure.

Features

  • Single cast thread eliminates cross-threading
  • UL Listed as a fittings locknut and stand alone rigid conduit locknut
  • All locknuts are symmetrical and can be assembled from either side
  • Conical flange on either side enters the knockout creating a 360 deg ground path
  • NPSL thread
  • Right hand thread direction
  • 3-1/2 - 8 thread

Specification

Material
Steel
Minimum Order Qty
1
Order Interval
1
Catalog ID
NEEL-900
Dimensions
4.68 in W x 0.4 in H
Finish
Zinc Plated
Size
3-1/2 in NPSL
Suitable For Use With
Rigid/IMC Conduit
Type
Standard
Application
For securing threaded conduit or connectors with tapered or straight thread to a knockout or unthreaded slip hole
Standard & Approvals
UL E32539, 514B, NEMA FB-1, RoHS Complaint
