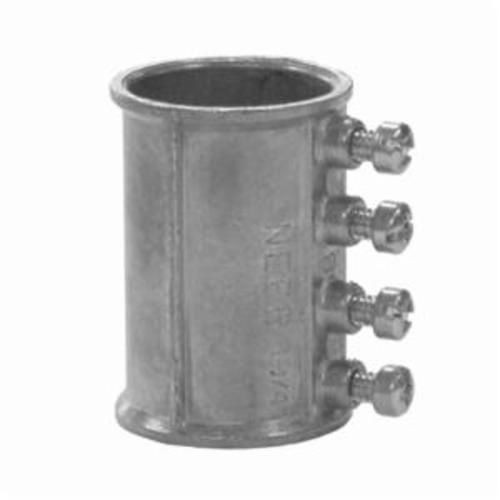

Appleton® NEER™ TC-515 TC-500 Straight Set Screw Coupling, 1-1/2 in, For Use With EMT Conduit, Die Cast Zinc

Selected Appleton® NEER™ TC-515 TC-500 Straight Set Screw Coupling, 1-1/2 in, For Use With EMT Conduit, Die Cast Zinc
Appleton® NEER™ TC-515 TC-500 Straight Set Screw Coupling, 1-1/2 in, For Use With EMT Conduit, Die Cast Zinc

Documents

Short Description

Appleton Group fittings keep the power flowing, keep your people safe, and last for decades. If the air is filled with flammable vapors, dusts and other dangers, selecting the correct fitting is a must. Even in an ordinary location, the right fittings make the job easier while ensuring a safe, durable electrical system. This is not the place to cut corners. Appleton Group provides a complete selection of conduit bodies, outlet boxes, device boxes, cable glands and other fittings for both hazardous and ordinary locations. A variety of materials and styles are available to suit your needs for weather and corrosion-resistance. Whether you are wiring an office building or an offshore oil platform, Appleton Group has all the top quality components you need.

Features

  • concrete tight when taped
  • Pre-set/pre-staked set screws
  • Combination head set screws

Specification

Material
Die Cast Zinc
Minimum Order Qty
1
Order Interval
1
Catalog ID
NEETC-515
Color
Metallic
Dimensions
2.2 in OD x 2.87 in L
Series
TC-500
Size
1-1/2 in
Suitable For Use With
EMT Conduit
Type
Straight Set Screw
Application
For Joining lengths of steel EMT for concretetight, dry or damp locations
Standard & Approvals
UL 514B, File No. E35001, CSA 208044/C22.2 No 18.3, NEMA FB-1, RoHS Complaint
