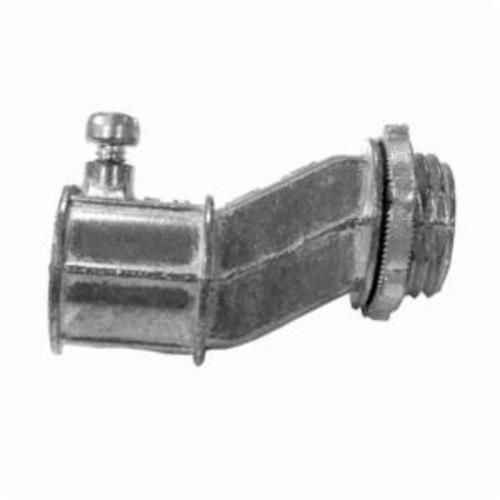

Appleton® NEER™ TN-50 Offset Set Screw Conduit Nipple, 1/2 in, For Use With EMT Fittings, Die Cast Zinc

Selected TN-50Appleton® NEER™ TN-50 Offset Set Screw Conduit Nipple, 1/2 in, For Use With EMT Fittings, Die Cast Zinc
TN-50Appleton® NEER™ TN-50 Offset Set Screw Conduit Nipple, 1/2 in, For Use With EMT Fittings, Die Cast Zinc

Documents

Features

  • Male NPS hub threads
  • Concrete tight when taped, furnished with locknut
  • Slight offset between two ends can be rotated to connect slightly misaligned EMT and knockout
  • Furnished with locknut

Specification

Material
Die Cast Zinc
Size
1/2 in
Type
Offset
Dimensions
0.93 in Dia x 2.1 in L
Standard & Approvals
UL 514B, UL E35001 Listed, CSA C22.2 No 18.3, 065178, CSA 208044, NEMA FB-1, RoHS Complaint
Suitable For Use With
1/2 in EMT to an Enclosure/Box
Series
TN
