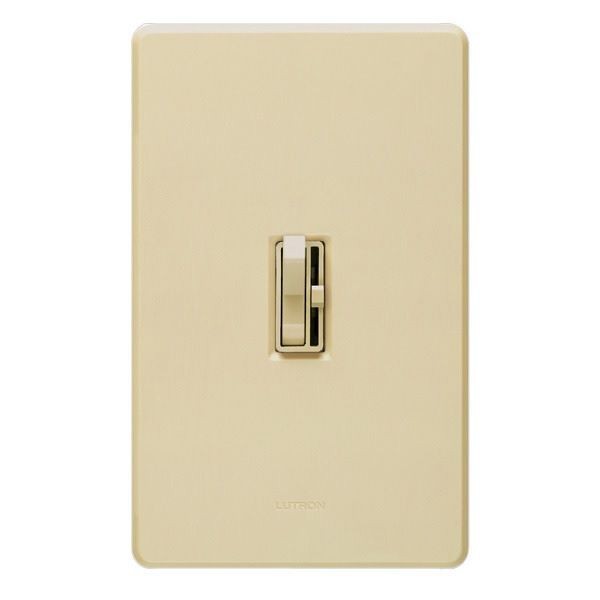

Ariadni® Toggler® AY-103PH-IV 3-Way Dimmer Switch, 120 VAC, Slide-to-Bright/Dim Operation, Ivory

Selected Ariadni® Toggler® AY-103PH-IV 3-Way Dimmer Switch, 120 VAC, Slide-to-Bright/Dim Operation, Ivory
Ariadni® Toggler® AY-103PH-IV 3-Way Dimmer Switch, 120 VAC, Slide-to-Bright/Dim Operation, Ivory

Documents

Short Description

These Lutron dimmers are designed to replace or match your traditional style switches. Save energy and extend bulb life with the Ariadni's easy-to-use toggle switch and small slide dimmer. Designed with a shallow 1-inch deep back cover for easy installation, Ariadni works with your existing traditional multi-gang wallplates.

Features

  • Matches existing switches
  • Toggle-style switch turns light on to level set by slider
  • Slide adjusts light to your favorite level
  • 100% factory tested
  • Coordinating Fassada® and stainless steel wallplates only available separately
  • Toggle turns on/off
  • Slide up to brighten, down to dim
  • 1000 W preset dimmers have voltage compensation which maintains stable light levels, despite line voltage variations

Specification

Frequency Rating
60 Hz
Lamp Type
Incandescent/Halogen
Material
Plastic
Operation Mode
Slide to Bright/Dim
Power Rating
1000 W
Start Type
Preset
Temperature Rating
0 to 40 deg C
Terminal Type
Push-In/Screw
Type
3-Way
Voltage Rating
120 VAC
Application
For residential, indoor use only
Standard & Approvals
UL Listed, CSA Certified, ETL Safety
Dimensions
4.6 in H x 2.86 in W x 0.23 in D
Color
Ivory
Control
Toggle
