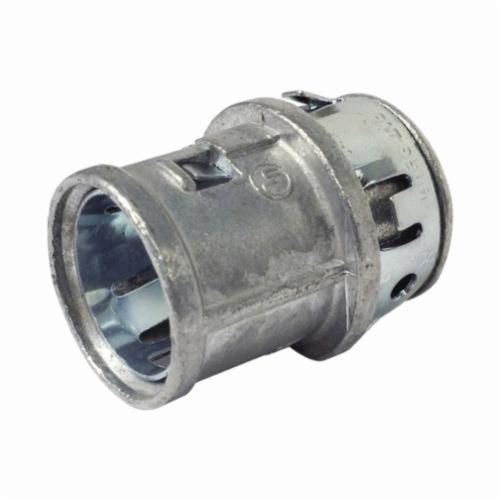

Arlington Snap2IT® 38A Straight Cable Connector With Insulated Throat, Locknut, 3/8 in Trade, 1/2 in Knockout, 0.45 to 0.612 in Cable Openings, Die Cast Zinc

Selected 38AArlington Snap2IT® 38A Straight Cable Connector With Insulated Throat, Locknut, 3/8 in Trade, 1/2 in Knockout, 0.45 to 0.612 in Cable Openings, Die Cast Zinc
38AArlington Snap2IT® 38A Straight Cable Connector With Insulated Throat, Locknut, 3/8 in Trade, 1/2 in Knockout, 0.45 to 0.612 in Cable Openings, Die Cast Zinc

Documents

Short Description

Arlington’s SNAP2IT ® connectors are designed for safe and fast installations of flex, MC, AC, and HCF cable - and cover the widest cable ranges in the industry.

Features

  • Safe and fast installations
  • Saves about 17 seconds per fitting
  • Competitively priced
  • Single cable opening
  • Straight angle
  • AC/ACG90/AC90, MCI-A/MCI/MC, HCF Steel and Aluminum cable

Specification

Knockout Size
1/2 in
Material
Die Cast Zinc
Minimum Order Qty
1
Order Interval
1
Cable Openings
0.405 - 0.612 in
Cable Type
AC/AC90
Connection Type
Snap-In
Trade Size
3/8 in
Application
For flexible metal conduit steel and aluminum (regular and reduced wall), continuous corrugated aluminum
Standard & Approvals
cULus 372D, CSA LR49636, RoHs Compliant
Dimensions
1 in Dia x 1.41 in L
Catalog ID
ART38A
