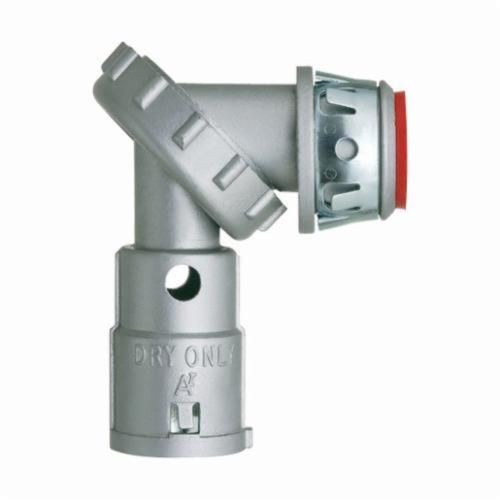

Arlington Snap2IT® Zero to 90™ 5090AST Cable Connector With Insulated Throat, 1/2 in Trade, 1/2 in Knockout, 0.86 to 0.92 in Cable Openings, Die Cast Zinc, Electro-Plated Zinc

Selected 5090ASTArlington Snap2IT® Zero to 90™ 5090AST Cable Connector With Insulated Throat, 1/2 in Trade, 1/2 in Knockout, 0.86 to 0.92 in Cable Openings, Die Cast Zinc, Electro-Plated Zinc
5090ASTArlington Snap2IT® Zero to 90™ 5090AST Cable Connector With Insulated Throat, 1/2 in Trade, 1/2 in Knockout, 0.86 to 0.92 in Cable Openings, Die Cast Zinc, Electro-Plated Zinc

Documents

Features

  • Arlington Zero to 90™ Snap2IT® Connector offers enhanced protection to the conduit wiring systems from damage due to movements
  • It features die cast zinc construction to offer enhanced durability
  • Connector has zinc electro plating to offer enhanced durability and corrosion-resistance
  • It is suitable for use with low silhouette under cabinet fluorescent fixtures
  • Steel and Aluminum MC/HCF and AC/HCF, flex cable
  • MC/HCF and AC/HCF cable
  • Zinc Electroplated

Specification

Knockout Size
1/2 in
Material
Die Cast Zinc
Minimum Order Qty
1
Order Interval
1
Cable Openings
0.86 - 0.92 in
Cable Type
AC/MC
Catalog ID
ART5090AST
Color
Silver
Connection Type
Snap-In
Dimensions
3.46 in H x 1.222 in W
Finish
Zinc Plated
Trade Size
1/2 in
Application
Rigid/IMC Conduits
Standard & Approvals
cULus 372D, CSA LR49636, RoHs Compliant
