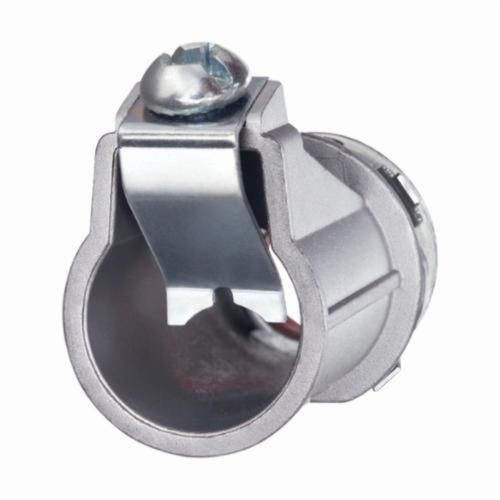

Arlington SNAP-TITE® Snap2IT® 7510AST Cable Connector With Insulated Throat, 3/4 in Trade, 3/4 in Knockout, 0.895 to 1.11 in Cable Openings, Die Cast Zinc

Selected 7510ASTArlington SNAP-TITE® Snap2IT® 7510AST Cable Connector With Insulated Throat, 3/4 in Trade, 3/4 in Knockout, 0.895 to 1.11 in Cable Openings, Die Cast Zinc
7510ASTArlington SNAP-TITE® Snap2IT® 7510AST Cable Connector With Insulated Throat, 3/4 in Trade, 3/4 in Knockout, 0.895 to 1.11 in Cable Openings, Die Cast Zinc

Documents

Features

  • Installs as fast and costs the same as our other Snap2It fitting s but cable insertion is even easier
  • Simply snap the cable into the fitting and snap it into the box no tools needed, the screw only holds the clip in place
  • Widest cable ranges
  • Super-secure - the angled, two-prong clip locks down on MC cable so there’s no chance of pullout
  • Cable is removable, simply loosen the screw on top
  • Concrete-tight when taped
  • AC, MCI/MCI-A/MC-PCS, HCF (Steel and Aluminum), ACG90/AC90 cable

Specification

Knockout Size
3/4 in
Material
Die Cast Zinc
Trade Size
3/4 in
Color
Silver
Cable Type
AC/MCI
Cable Openings
0.895 - 1.11 in
Standard & Approvals
cULus 372D, CSA LR49636, RoHs Compliant
Application
For flexible metal conduit steel and aluminum (regular and reduced wall), continuous corrugated aluminum
Dimensions
2.496 in H x 1.709 in W
