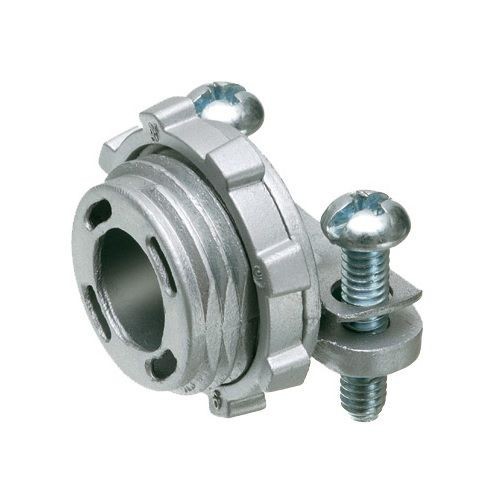

Arlington 8400 Straight Cable Connector With 0.4 in Dia Round End Stop, 1 in Trade, 1/2 in Knockout, 0.225 to 0.612 in Cable Openings, Die Cast Zinc

Selected Arlington 8400 Straight Cable Connector With 0.4 in Dia Round End Stop, 1 in Trade, 1/2 in Knockout, 0.225 to 0.612 in Cable Openings, Die Cast Zinc
Arlington 8400 Straight Cable Connector With 0.4 in Dia Round End Stop, 1 in Trade, 1/2 in Knockout, 0.225 to 0.612 in Cable Openings, Die Cast Zinc

Documents

Features

  • 0.4 in end stop diameter
  • Concrete-tight when taped
  • Single cable opening
  • Straight angle
  • Round throat shape
  • AC, MC/MCI-A, NM and SE cable
  • Clamp, 2-Screw connection

Specification

Knockout Size
1/2 in
Material
Die Cast Zinc
Minimum Order Qty
1
Order Interval
1
Cable Openings
0.225 - 0.612 in
Cable Type
AC/MC
Catalog ID
ART8400
Connection Type
Threaded
Dimensions
0.86 in L x 0.876 in W x 0.876 in H
Trade Size
1 in
Standard & Approvals
UL E123751, CSA LR49636, RoHs Compliant
