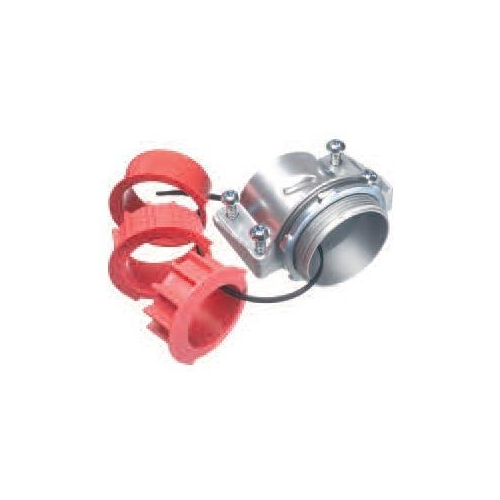

Arlington 8413 Cable Fitting With End Stop Bushing and Built-in End Stop, 1-1/4 in Trade, 1-1/4 in Knockout, 1 to 1.46 in Cable Openings, Die Cast Zinc

Selected Arlington 8413 Cable Fitting With End Stop Bushing and Built-in End Stop, 1-1/4 in Trade, 1-1/4 in Knockout, 1 to 1.46 in Cable Openings, Die Cast Zinc
Arlington 8413 Cable Fitting With End Stop Bushing and Built-in End Stop, 1-1/4 in Trade, 1-1/4 in Knockout, 1 to 1.46 in Cable Openings, Die Cast Zinc

Documents

Short Description

Save time and money Arlington’s new, low cost MC cable fittings in a variety of sizes, are super-convenient and cost-effective. Each fitting has a built-in end stop, but also comes with additional end stop bushings that accommodate different size cable bundles. ONE trade size fits several cable sizes.

Features

  • Low cost saves time and money
  • Fast and Easy to install
  • There’s no need to remove the strap just loosen the screws and insert the bushing that works best with the cables you’re installing
  • Zinc die-cast fittings cost much less than steel or malleable iron fittings
  • Reduces inventory comes with additional end stop bushings
  • Built-in end stop in fitting
  • Concrete-tight when taped
  • Patented design
  • Single cable opening
  • 0.87 - 1.37 in wire bumble outer diameter
  • 2-3, 2-4, 1-3, 1-4, 1/0-3, 1/0-4, 2/0-3, 2/0-4, 3/0-3 AWG/KCMIL conductor size
  • MCI/MCI-A, MC/HCF/AC/HCF Steel and Aluminum, AC90, TECK90 cable
  • Clamp, 2-Screw connection

Specification

Knockout Size
1-1/4 in
Material
Die Cast Zinc
Minimum Order Qty
1
Order Interval
1
Video
http://www.youtube.com/v/vQMB6H0bMnE
Cable Openings
1 - 1.46 in
Cable Type
MCI/MCI-A
Catalog ID
ART8413
Connection Type
Threaded
Dimensions
2.156 in L x 1.885 in W x 2.575 in H
Trade Size
1-1/4 in
Application
For flexible metal conduit steel and aluminum (regular and reduced wall), continuous corrugated aluminum
Standard & Approvals
UL Listed, cULus 372D, CSA Certified, RoHs Compliant
