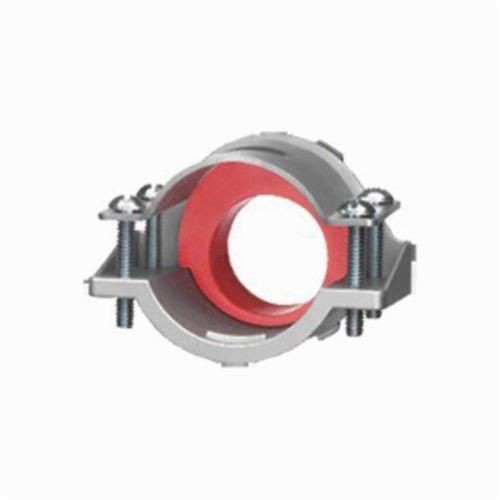

Arlington 8415 Cable Fitting With End Stop Bushing and Built-in End Stop, 2 in Trade, 2 in Knockout, 1.7 to 2.29 in Cable Openings, Die Cast Zinc

Selected 8415Arlington 8415 Cable Fitting With End Stop Bushing and Built-in End Stop, 2 in Trade, 2 in Knockout, 1.7 to 2.29 in Cable Openings, Die Cast Zinc
8415Arlington 8415 Cable Fitting With End Stop Bushing and Built-in End Stop, 2 in Trade, 2 in Knockout, 1.7 to 2.29 in Cable Openings, Die Cast Zinc

Documents

Short Description

Save time and money Arlington’s new, low cost MC cable fittings in a variety of sizes, are super-convenient and cost-effective. Each fitting has a built-in end stop, but also comes with additional end stop bushings that accommodate different size cable bundles. ONE trade size fits several cable sizes.

Features

  • Low cost saves time and money
  • Fast and Easy to install
  • There’s no need to remove the strap just loosen the screws and insert the bushing that works best with the cables you’re installing
  • Zinc die-cast fittings cost much less than steel or malleable iron fittings
  • Reduces inventory comes with additional end stop bushings
  • Built-in end stop in fitting
  • Concrete-tight when taped
  • Patented design
  • Single cable opening
  • 1.55 - 2.05 in wire bumble outer diameter
  • 250-4, 300-4, 350-3, 350-4, 500-3 AWG/KCMIL conductor size
  • MCI/MCI-A, MC/HCF/AC/HCF Steel and Aluminum, AC90, TECK90 cable
  • Clamp, 4-Screw connection

Specification

Knockout Size
2 in
Material
Die Cast Zinc
Trade Size
2 in
Application
For flexible metal conduit steel and aluminum (regular and reduced wall), continuous corrugated aluminum
Standard & Approvals
UL Listed, cULus 372D, CSA Certified, RoHs Compliant
Cable Type
MCI/MCI-A
Connection Type
Threaded
Cable Openings
1.7 - 2.2 in
Dimensions
2.901 in L x 2.75 in W x 3.7 in H
