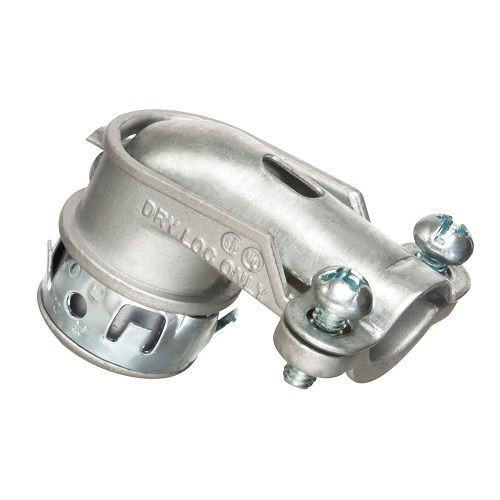

Arlington 850 2-Screw Cable Connector, 3/8 in Trade, 1/2 in Knockout, 0.44 to 0.75 in Cable Openings, Die Cast Zinc

Selected Arlington 850 2-Screw Cable Connector, 3/8 in Trade, 1/2 in Knockout, 0.44 to 0.75 in Cable Openings, Die Cast Zinc
Arlington 850 2-Screw Cable Connector, 3/8 in Trade, 1/2 in Knockout, 0.44 to 0.75 in Cable Openings, Die Cast Zinc

Documents

Features

  • Concrete-tight construction
  • 1/2 in knockout
  • Threaded X Screw connection
  • 0.620 in throat diameter
  • 0.360 in thread length
  • 1.120 in locknut
  • Single cable opening
  • Two Screw Clamp

Specification

Material
Die Cast Zinc
Mounting Type
Screw
Suitable For Use With
Aluminum and Steel Flex, AC, MC and MCI-A Cable
Trade Size
3/8 in
Type
Non-Insulated Throat
Application
For use with aluminum and steel flex, armored cable and metal clad cables
Standard & Approvals
cULus Listed, CSA Certified, RoHS Complaint
Dimensions
1.8 in L x 1.325 in W x 0.75 in H
Angle
90 deg
Cable Openings
0.44 - 0.75 in
