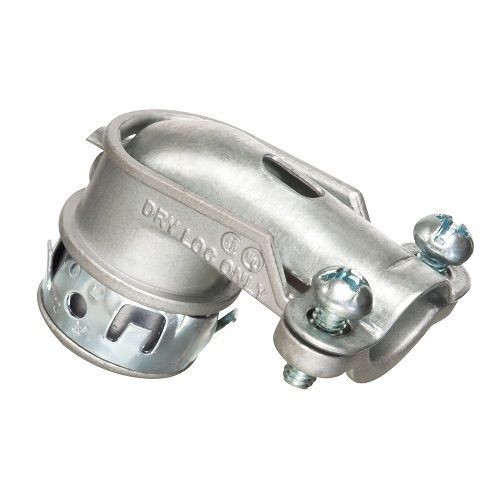

Arlington 851 2-Screw Cable Connector, 1/2 in Trade, 1/2 in Knockout, 0.635 to 1.085 in Cable Openings, Die Cast Zinc

Selected Arlington 851 2-Screw Cable Connector, 1/2 in Trade, 1/2 in Knockout, 0.635 to 1.085 in Cable Openings, Die Cast Zinc
Arlington 851 2-Screw Cable Connector, 1/2 in Trade, 1/2 in Knockout, 0.635 to 1.085 in Cable Openings, Die Cast Zinc

Documents

Features

  • Concrete-tight construction
  • 1/2 in knockout
  • Threaded X Screw connection
  • 0.620 in throat diameter
  • 0.415 in thread length
  • 1.120 in locknut
  • Single cable opening
  • Two Screw Clamp

Specification

Material
Die Cast Zinc
Mounting Type
Screw
Suitable For Use With
Aluminum and Steel Flex, AC, MC and MCI-A Cable
Trade Size
1/2 in
Type
Non-Insulated Throat
Application
For use with aluminum and steel flex, armored cable and metal clad cables
Standard & Approvals
cULus Listed, CSA Certified, RoHS Complaint
Dimensions
2.14 in L x 1.835 in W x 1.085 in H
Angle
90 deg
Cable Openings
0.635 - 1.085 in
