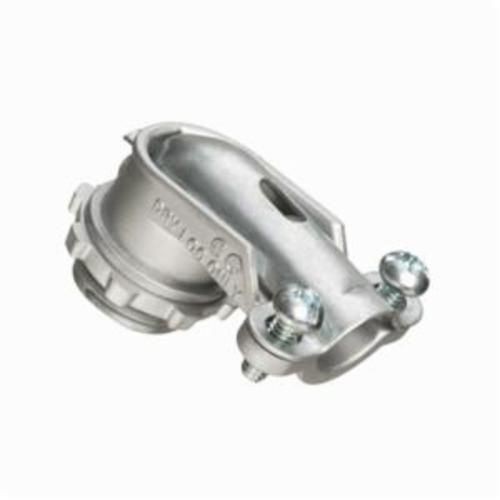

Arlington 855 2-Screw Cable Connector, 1-1/2 in Trade, 1-1/2 in Knockout, 1.4 to 2.4 in Cable Openings, Die Cast Zinc
Arlington 855 2-Screw Cable Connector, 1-1/2 in Trade, 1-1/2 in Knockout, 1.4 to 2.4 in Cable Openings, Die Cast Zinc
SKU: ART855
Manufacturer Part Number: 855
UPC: 018997008558
Documents
Features
- Concrete-tight construction
- 1-1/2 in knockout
- Threaded X Screw connection
- 1.585 in throat diameter
- 0.750 in thread length
- 2.385 in locknut
- Single cable opening
- Two Screw Clamp
Specification
| Material | Die Cast Zinc |
|---|---|
| Mounting Type | Screw |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Angle | 90 deg |
| Cable Openings | 1.4 - 2.4 in |
| Catalog ID | ART855 |
| Dimensions | 6.05 in L x 4.875 in W x 2.4 in H |
| Suitable For Use With | Aluminum and Steel Flex, AC and MC Cable |
| Trade Size | 1-1/2 in |
| Type | Non-Insulated Throat |
| Application | For use with aluminum and steel flex, armored cable and metal clad cables |
| Standard & Approvals | cULus Listed, CSA Certified, RoHS Complaint |
